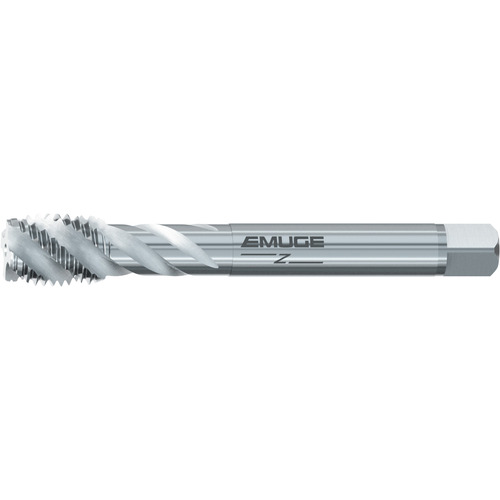

G 3/8 BSPP 2ENORM-Z/E MAC
| Tool Type | Pipe Tap | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 3/8″ | Chamfer | E |
| Threads per Inch (TPI) | 19 | Coating | Uncoated |
| Thread Standard | G(BSP) | Cutting Edge Material | HSSE |
| Usable Length (LU) | 22 mm | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Special Feature | The Enorm Z/E design is typically for blind hole threads in long chipping materials. |
| Flute Count (NOF) | 5 | Length Group | DIN |
| Overall Length (OAL) | 100 mm | Series/List # | C0513501 |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Thread Size | 3/8″-19 |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Germany |
