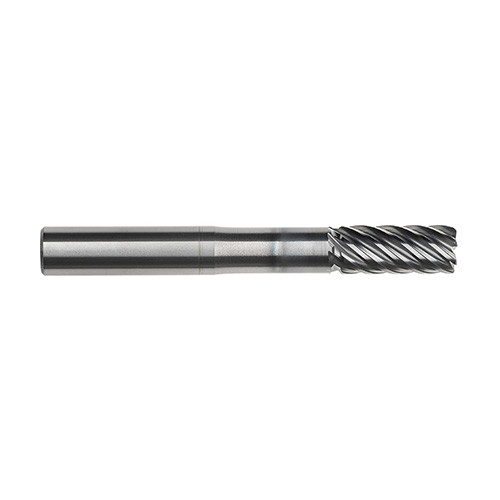

66594 16MM 7F 0.5R EM
SQ End Mill; 0.63″ Dia. × 1.3386″ LOC × 0.63″ Shank Dia. × 4.921″ OAL ; 7 FL
| Cutting Diameter (DC) | 16 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Usable Length (LU) | 75 mm |
| Depth of Cut Maximum (APMX) | 34 mm | Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 125 mm | Grade | IM206 AlCrNX |
| Flute Count (NOF) | 7 | Tool Type | Single End |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.740
