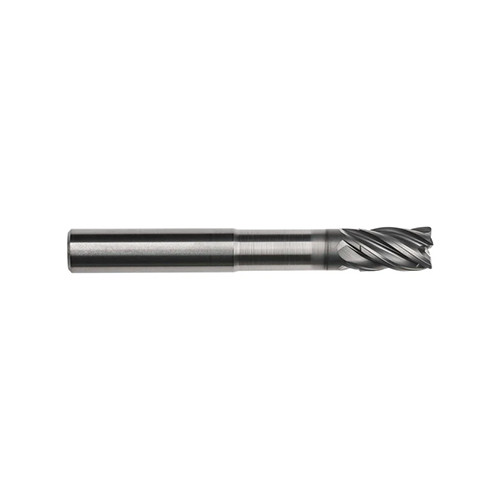

62259 20MM 5F 1.5R EM
SQ End Mill; 0.787″ Dia. × 1.1811″ LOC × 0.787″ Shank Dia. × 5.315″ OAL ; 5 FL
| Cutting Diameter (DC) | 20 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Usable Length (LU) | 82 mm |
| Depth of Cut Maximum (APMX) | 30 mm | Corner Radius (RE) | 1.5 mm |
| Overall Length (OAL) | 135 mm | Grade | IM250 TaC |
| Flute Count (NOF) | 5 | Tool Type | Single End |
| Flute Helix Angle (FHA) | 35 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
1.250
