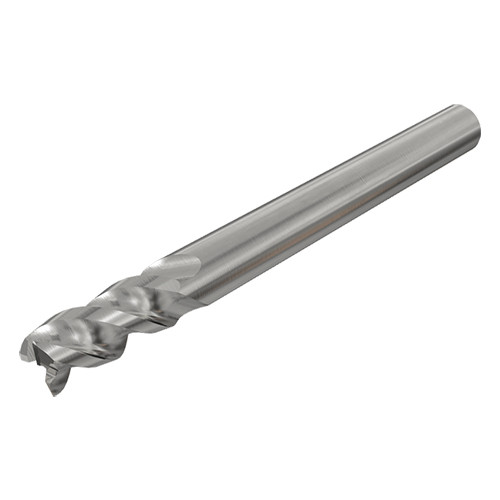

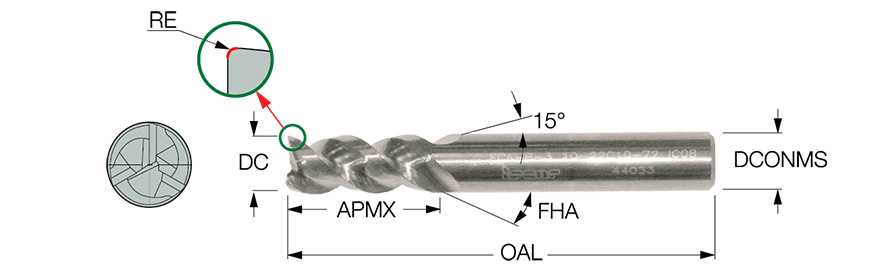

ECAI-B-3 625-1.0-C625 IC08
SQ End Mill; 5/8″ Dia. × 1″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 0.008″ RE ; 3 FL ; 1″ LBS ; Carbide ; Uncoated
| Cutting Diameter (DC) | 5/8″ | Corner Radius (RE) | 0.008″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1″ | Grade | IC08 |
| Overall Length (OAL) | 3-1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.625″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 3 flute, 45° helix, medium length, solid carbide endmills. Used for machining aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.383
