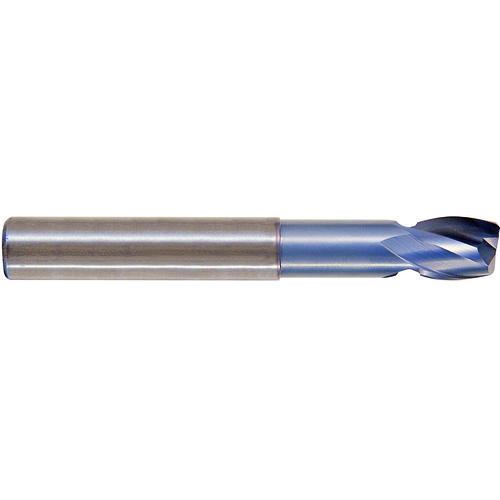

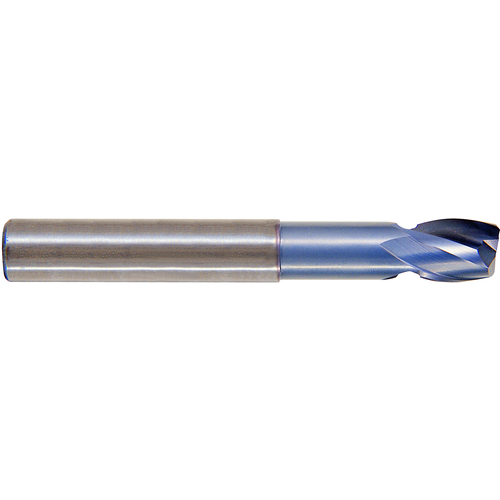

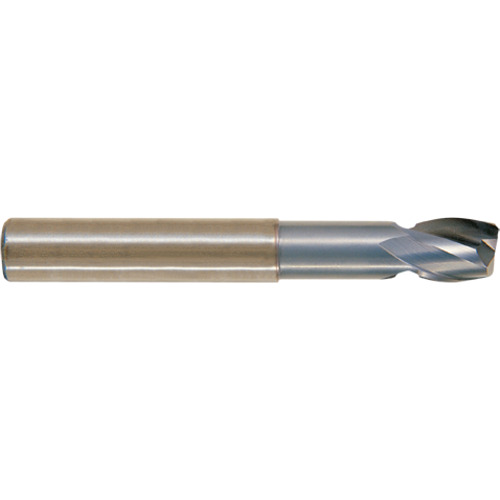

Corner Radius End Mill; 16 mm Dia. × 18 mm LOC × 16 mm Shank Dia. × 100 mm OAL ; 2 FL ; Carbide ; TiCN ; Series EG909
| Cutting Diameter (DC) | 16 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Corner Radius (RE) | 1.3 mm |
| Depth of Cut Maximum (APMX) | 18 mm | Neck Diameter (DN) | 14.5 mm |
| Overall Length (OAL) | 100 mm | Tool Type | Corner Radius Stub Cut Length with Neck TiCN Coated |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.6299″ |
| Coating | TiCN | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | EG909 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius | Trade Name | ALU-Power |
| Usable Length (LU) | 45 mm |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.125
Package Width
1
Package Height
1
Package Weight
0.541
