.031X.005R 7XLGFLT 4FL AL

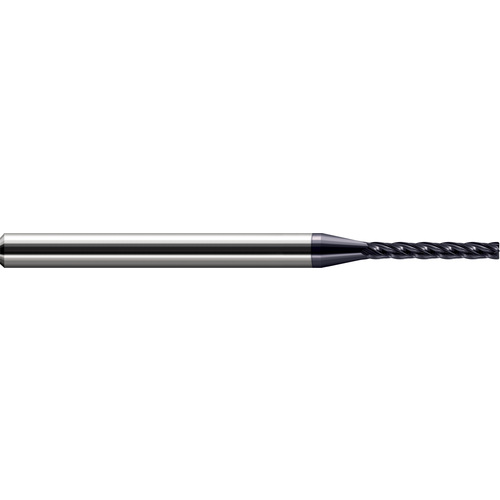

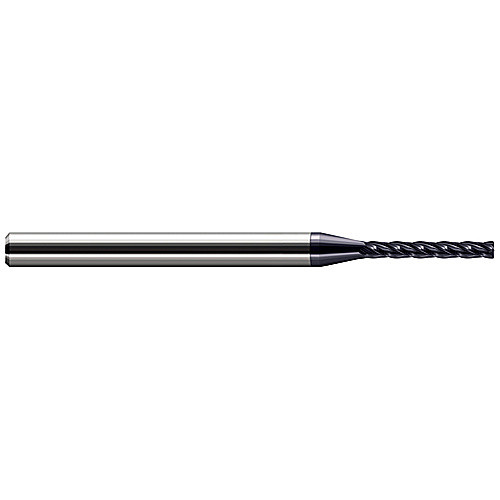

SQ End Mill; 1/32″ Dia. × 7/32″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 0.005″ RE ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/32″ | Corner Radius (RE) | 0.005″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Group | 7D |
| Depth of Cut Maximum (APMX) | 7/32″ | Flute Type | Spiral |
| Overall Length (OAL) | 2-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.031″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Shank Size (SS) | 1/8″ |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.005″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 7/32″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
