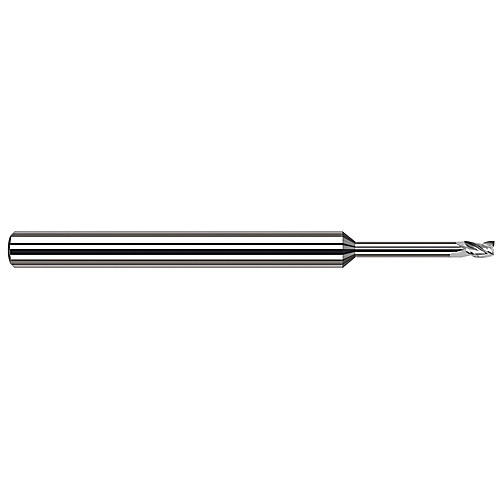

2MM D SQ VHEL 8X RCH 3FL
SQ End Mill; 2 mm Dia. × 3 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 2 mm | Usable Length (LU) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 3 mm | Neck Diameter (DN) | 1.96 mm |
| Overall Length (OAL) | 50 mm | Length Group | 8D |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 42 Degrees | Shank Size (SS) | 4 mm |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
