.028X.168 LOC HEXALOB 4FL

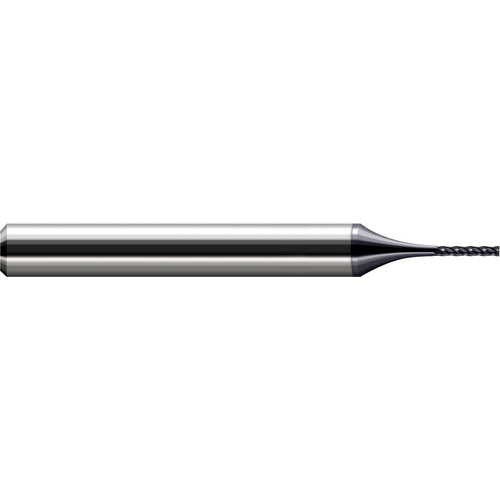

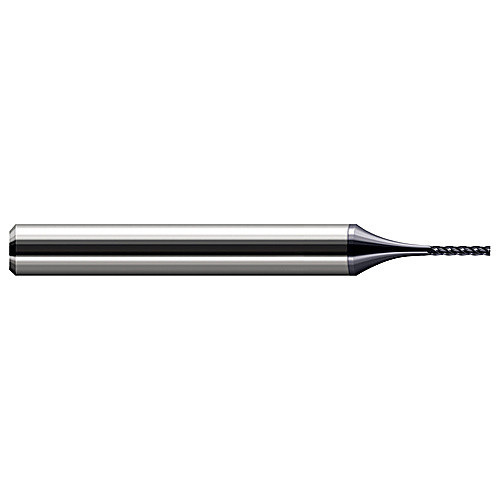

SQ End Mill; 0.028″ Dia. × 0.168″ LOC × 0.1575″ Shank Dia. × 1.575″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.028″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.1575″ | Usable Length (LU) | 0.168″ |
| Depth of Cut Maximum (APMX) | 0.168″ | Length Group | 6D |
| Overall Length (OAL) | 1.575″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Shank Size (SS) | 0.1575″ |
| Flute Helix Angle (FHA) | 35 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
