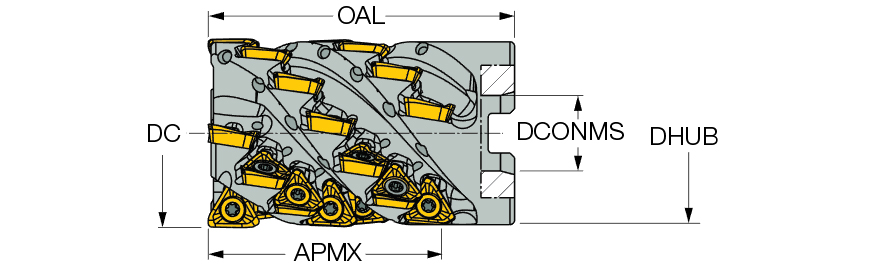

HM390 SM D040-49-4-16-10
| Application | | Shouldering | | Master Insert Identification (MIID) | HM390 TPKT 1003 |
| Cutting Item Count (CICT) | 28 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 49 mm | Arbor Style | A |
| Cutting Diameter (DC) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Body Material | Steel |

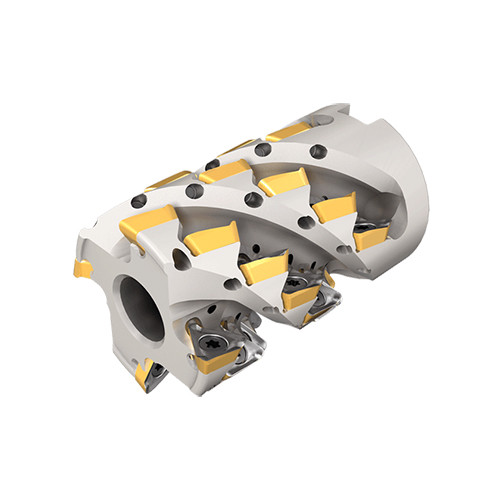

| Overall Length (OAL) | 65 mm | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 1.72″ | Hub Diameter (DHUB) | 38.8 mm |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges | Country of Origin | Israel |
| Remarks | When installing inserts with a corner radius greater than 2 mm, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info |
Shipping Info
Package Weight
1.021
