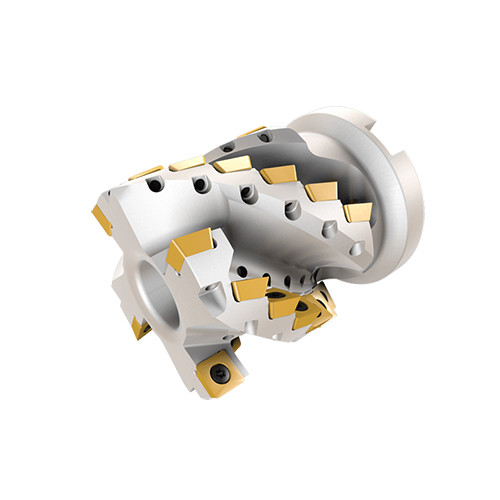

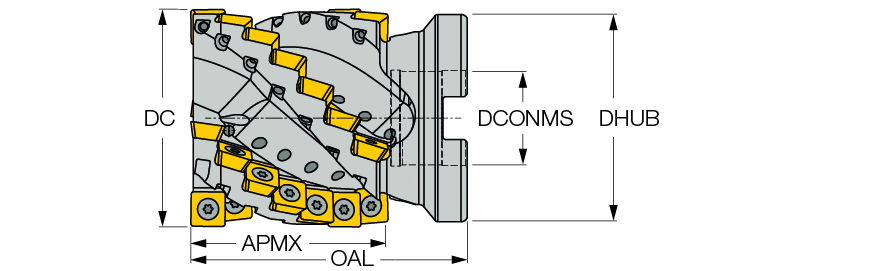

SDK D4.0-5.1-06-1.5-12-C
| Application | | Shouldering | Slotting | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 72 | Master Insert Identification (MIID) | SDHT 1205 |
| Depth of Cut Maximum (APMX) | 5.154″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 4″ | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Overall Length (OAL) | 6.496″ | Body Material | Steel |
| Cutting Length | 1.72″ | Hub Diameter (DHUB) | 3.228″ |
Product Features
| Family Description | Extended flute shell mills carrying SDHW/T 1205... inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
