FFV D2.0-05-.75-R-VN07
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Master Insert Identification (MIID) | FF VNMT 0706ZN-ER |
| Cutting Item Count (CICT) | 5 | Coolant Supply Property (CSP) | Coolant Thru |

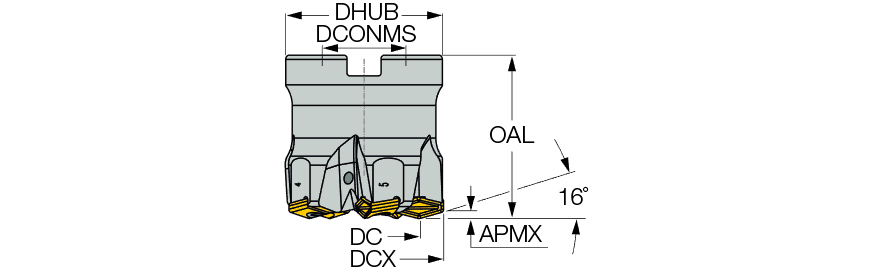

| Depth of Cut Maximum (APMX) | 0.059″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.417″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Maximum (DCX) | 2″ |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Cutting Length | 1.72″ | Body Material | Steel |
| Number of Teeth | 16 | Hub Diameter (DHUB) | 1.85″ |
Product Features

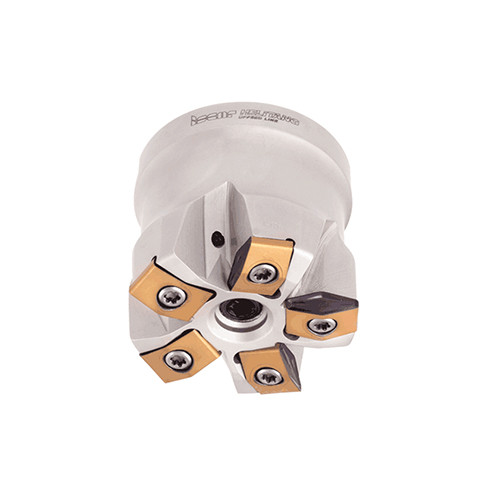

| Family Description | Fast feed shell mill, carrying tangentially clamped inserts with 4 cutting edges. | Country of Origin | Israel |

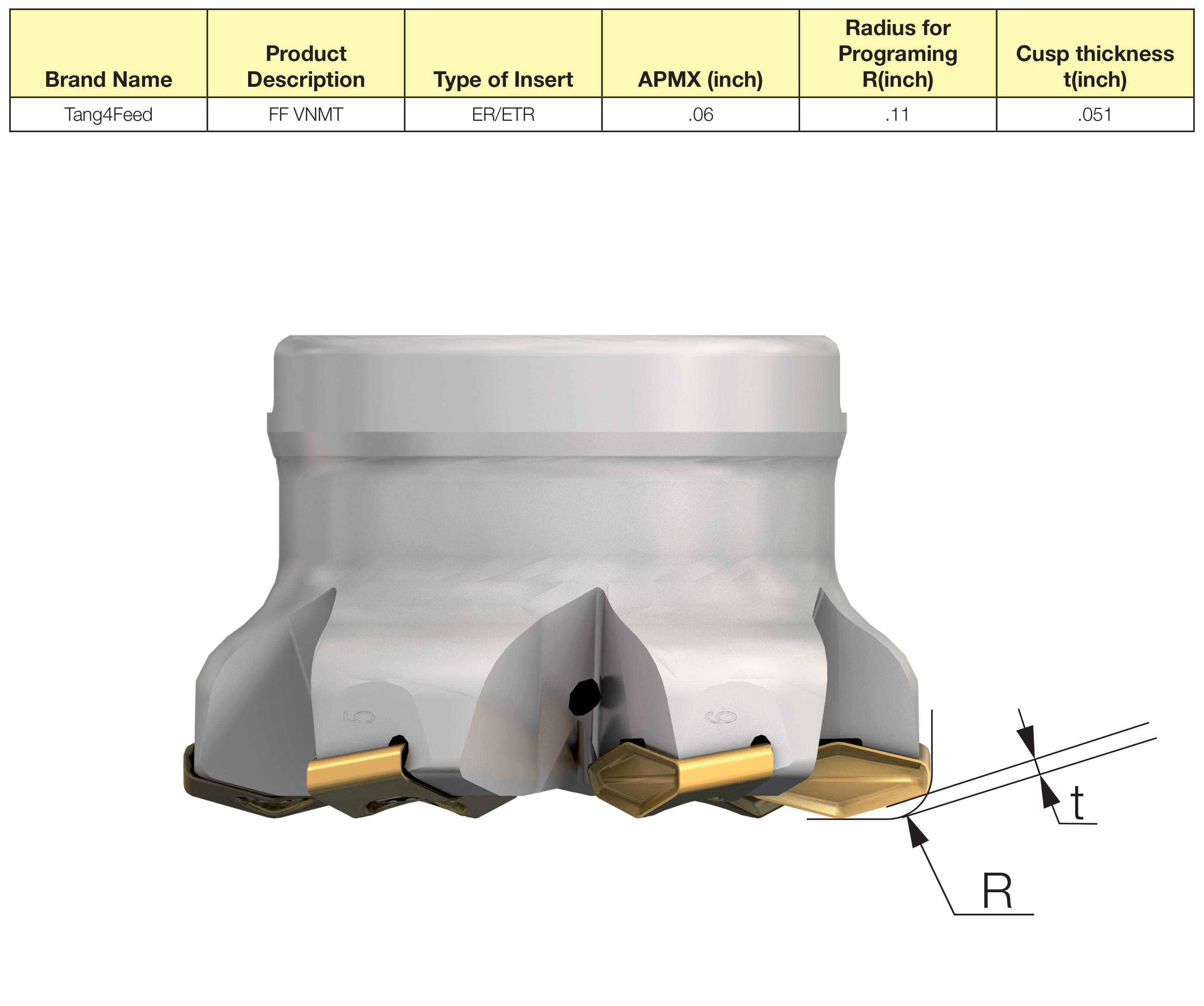

| Remarks | Radius for programming .110 To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
1.411
