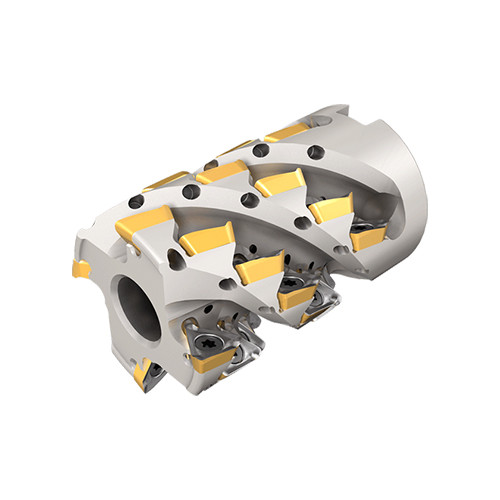

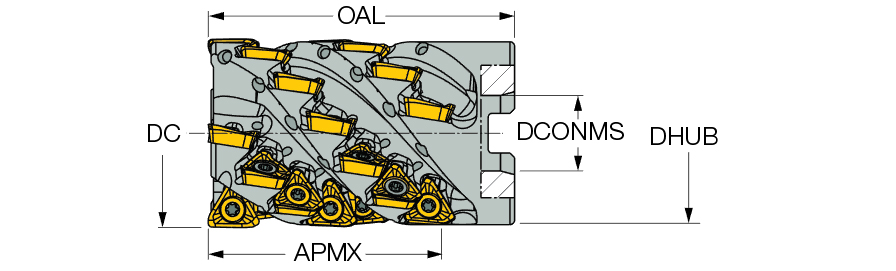

HM390 SM D1.5-2.-4-.75-10
| Application | | Helical Interpolation | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 28 | Master Insert Identification (MIID) | HM390 TPKT 1003 |

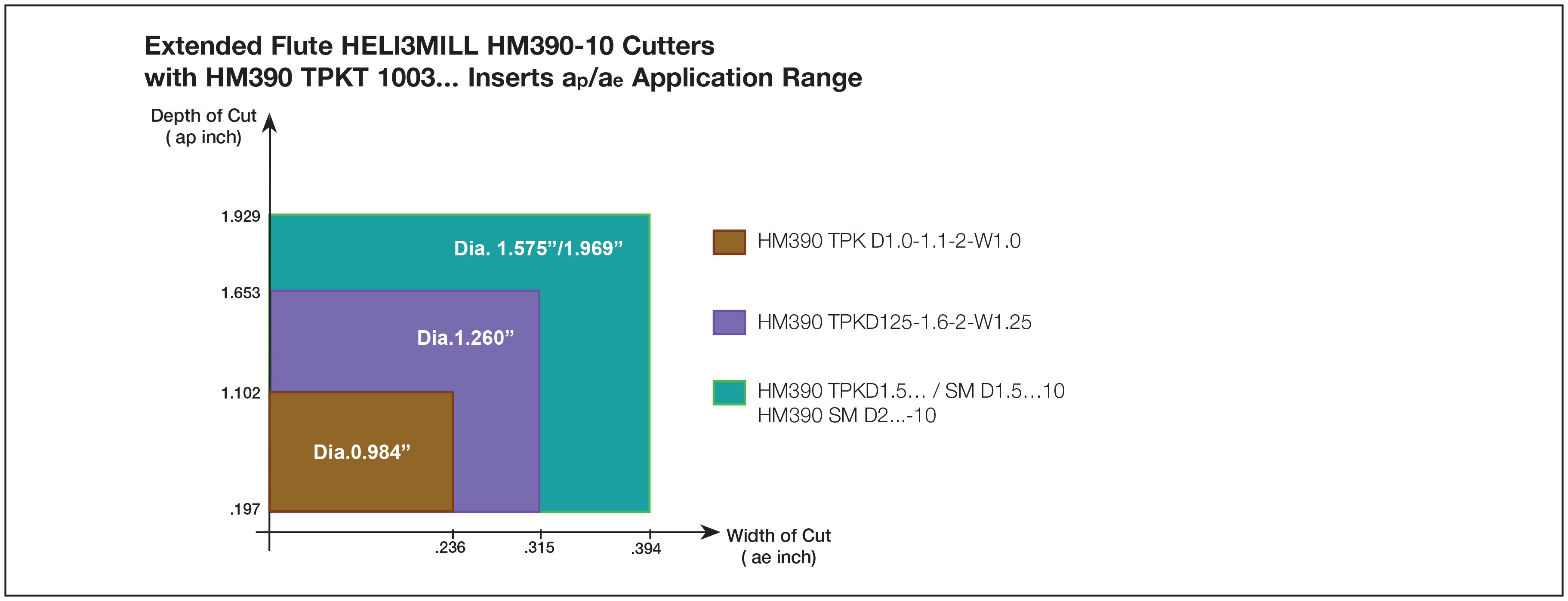

| Depth of Cut Maximum (APMX) | 1.929″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/2″ | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/4″ | Body Material | Steel |
| Cutting Length | 1.72″ | Hub Diameter (DHUB) | 1.452″ |
Product Features
| Family Description | Extended flute shell mills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges | Country of Origin | Israel |
Shipping Info
Package Weight
1.025
