1/2-4FL-DE-STUB

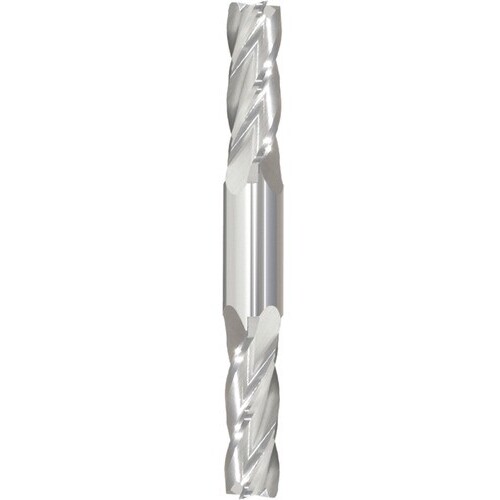

SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 236
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | Slotting | Profiling | Ramping |
| Depth of Cut Maximum (APMX) | 5/8″ | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 3″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | Uncoated | Series/List # | 236 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Double End |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.28
