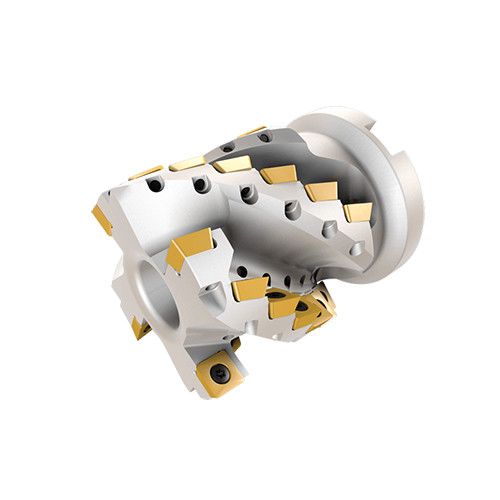

SDK D050-48-04-27-10-C
| Application | | Shouldering | Slotting | | Master Insert Identification (MIID) | SDHT 100408-PDEN |
| Cutting Item Count (CICT) | 24 | Coolant Supply Property (CSP) | Coolant Thru |

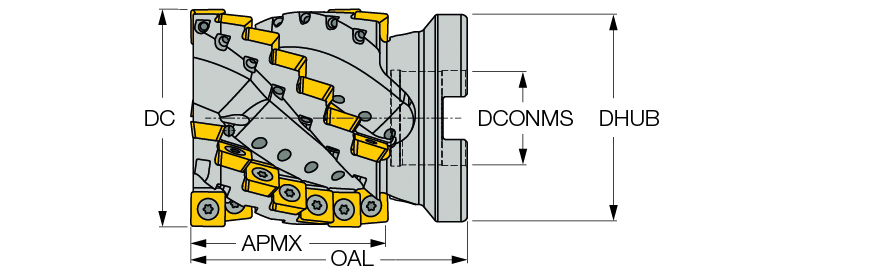

| Depth of Cut Maximum (APMX) | 48 mm | Arbor Style | A |
| Cutting Diameter (DC) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 75.9 mm | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 1.72″ | Hub Diameter (DHUB) | 49 mm |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying SDHW/T 100408... inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.713
