| Application | | Shouldering | Slotting | | Master Insert Identification (MIID) | SDHT 1205 |
| Cutting Item Count (CICT) | 50 | Coolant Supply Property (CSP) | Coolant Thru |

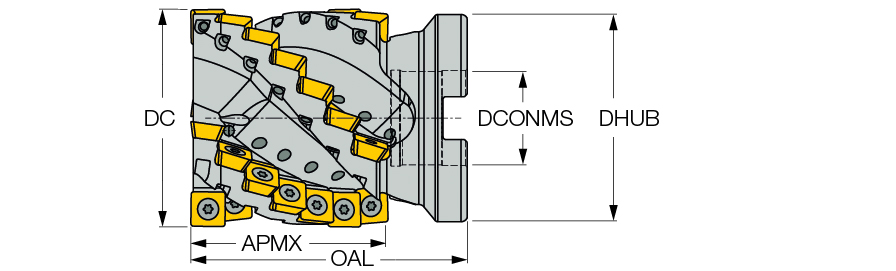

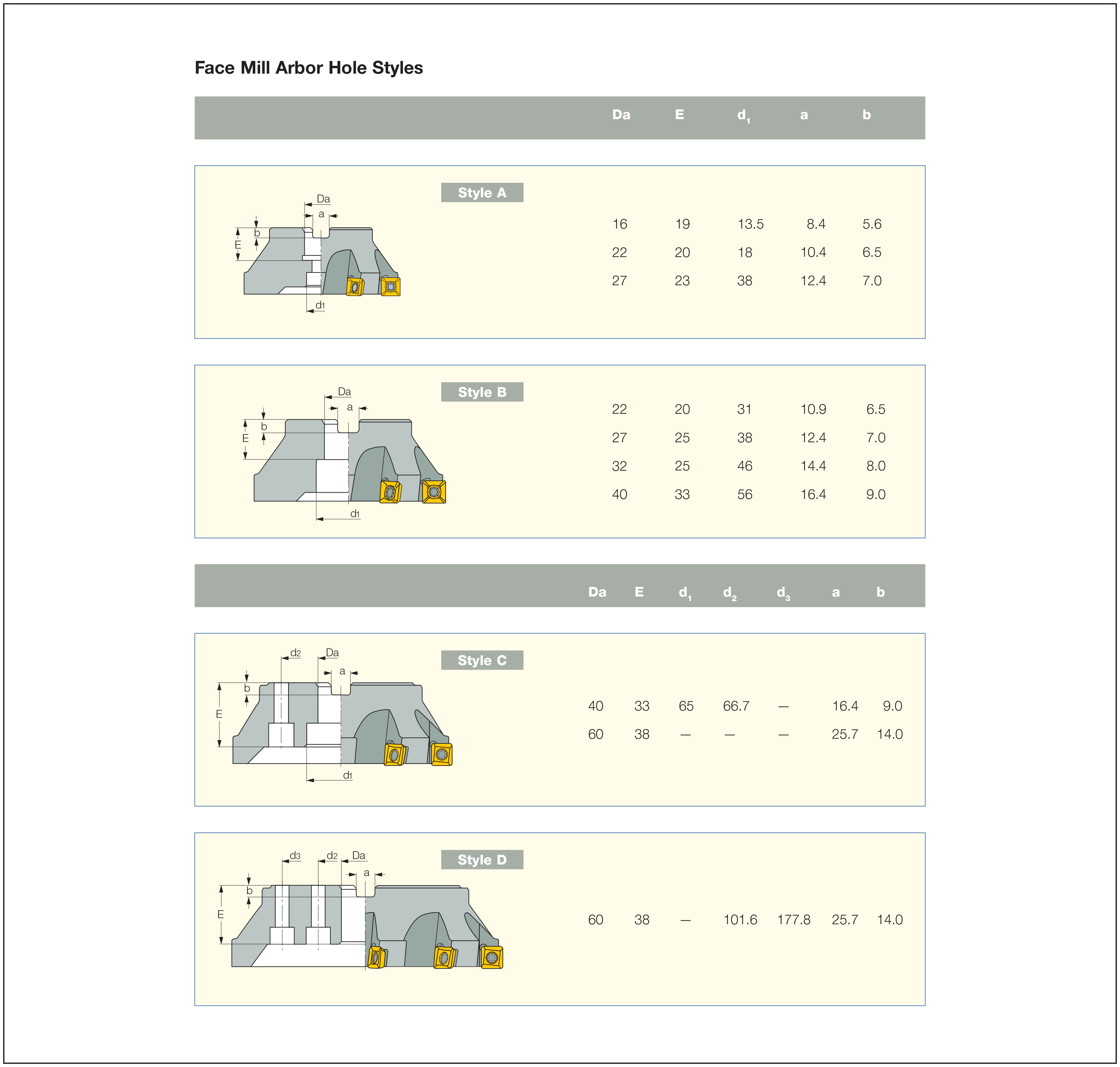

| Depth of Cut Maximum (APMX) | 109 mm | Arbor Style | A |
| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Body Material | Steel |

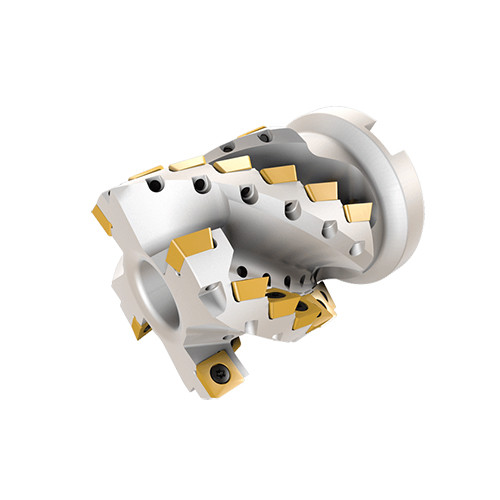

| Overall Length (OAL) | 143 mm | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 1.72″ | Hub Diameter (DHUB) | 77.6 mm |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying SDHT 1205... inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
LocalField10
0
Package Weight
8.276
