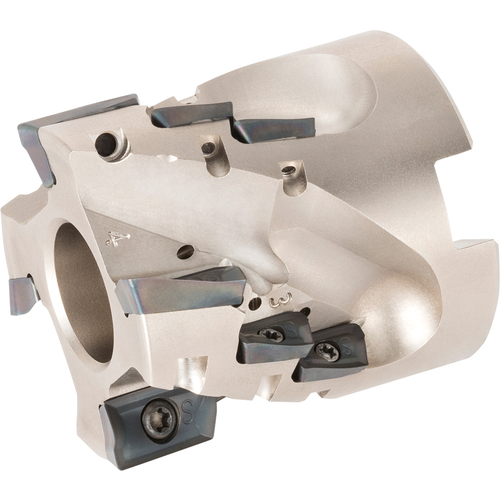

MECHT 50R171145TM (MEC Series), Helical Shell Mill
| Application | Facing | Shouldering | Slotting | Master Insert Identification (MIID) | BDMT1704 (1st Stage) | BDMT11T308 (2nd Stage and Above) |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 20 | Cutting Direction (HAND) | Right Hand |

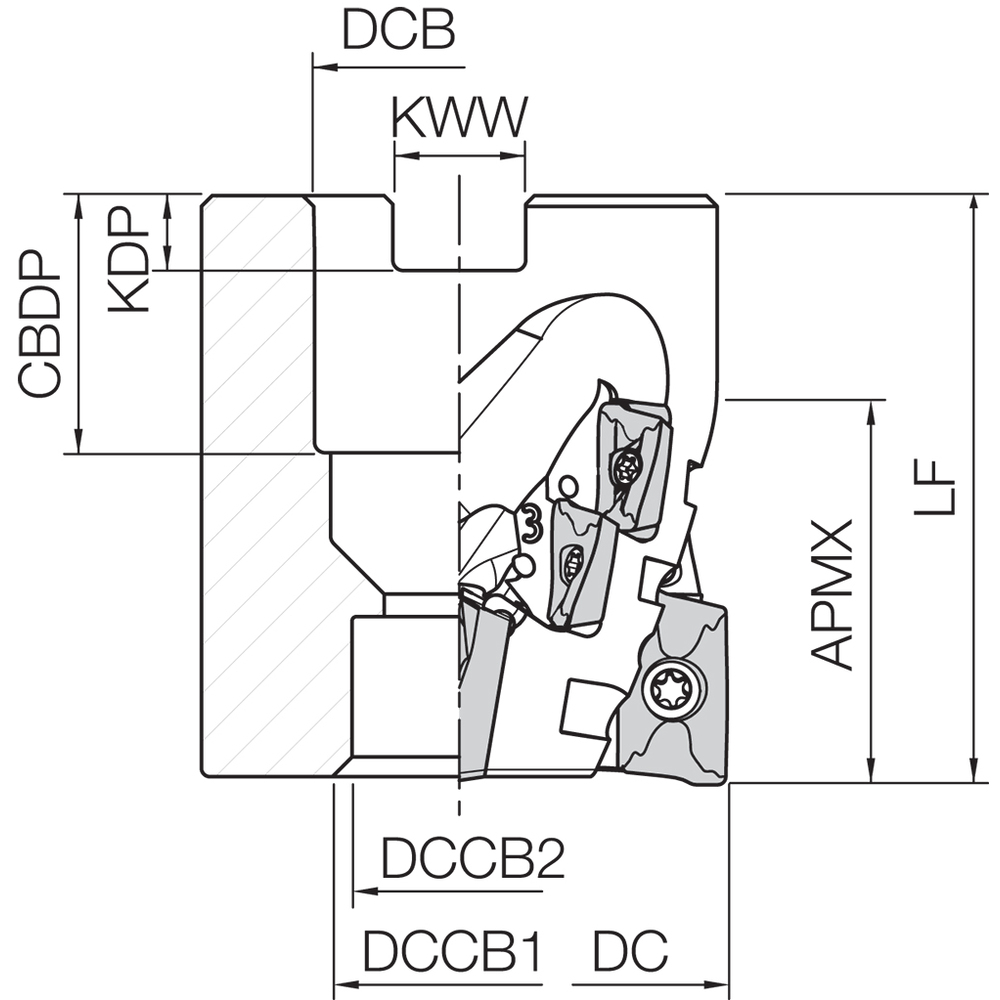

| Depth of Cut Maximum (APMX) | 43 mm | Cutting Diameter Maximum (DCX) | 50 mm |
| Cutting Diameter (DC) | 50 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Body Material | Steel |
| Flute Count (NOF) | 5 | Tool Type | Helical Shell Mill |
| Overall Length (OAL) | 65 mm | Series/List # | MEC |
| Number of Teeth | 20 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.516
