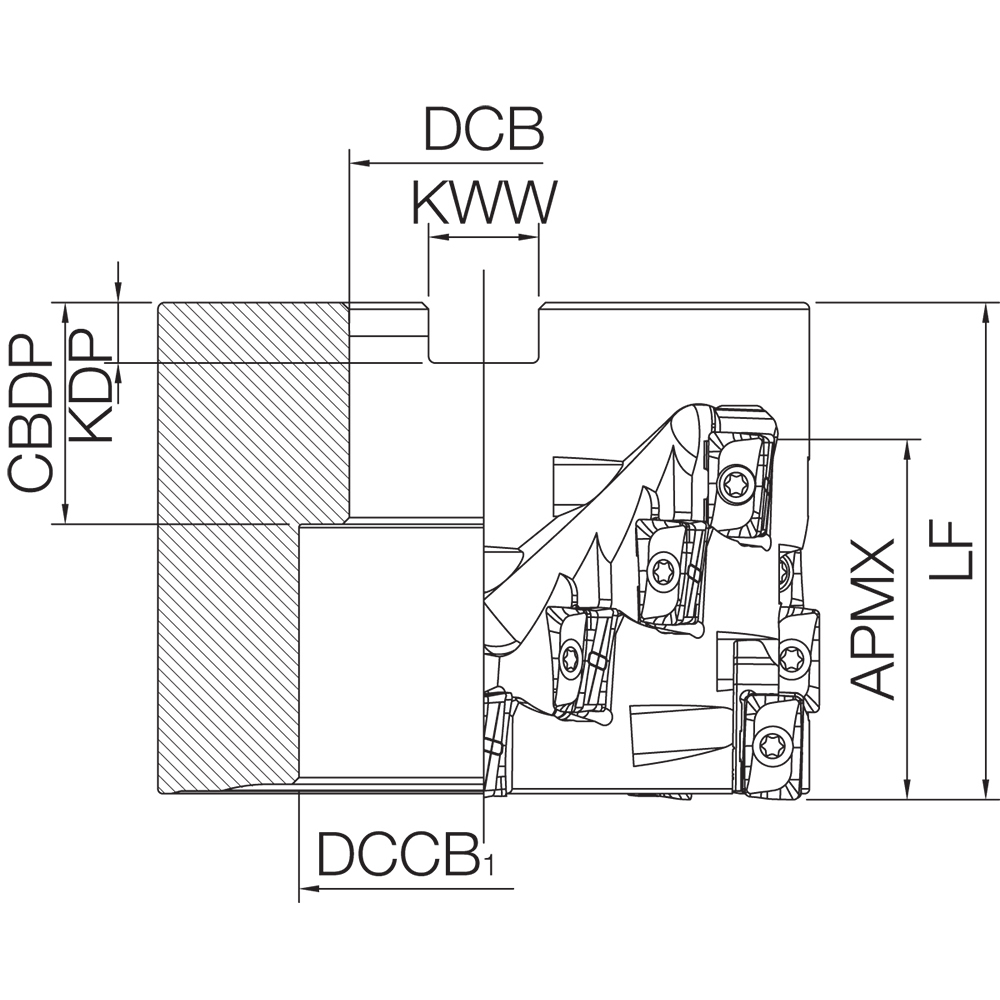

MEWH 100R1545TM (M-FOUR Series), Helical Shell Mill
| Application | Facing | Shouldering | Master Insert Identification (MIID) | LOMU1505 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 20 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 53 mm | Cutting Diameter Maximum (DCX) | 100 mm |
| Cutting Diameter (DC) | 100 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Flute Count (NOF) | 5 | Tool Type | Helical Shell Mill |
| Overall Length (OAL) | 74 mm | Series/List # | MEW |
| Number of Teeth | 20 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
6.753
