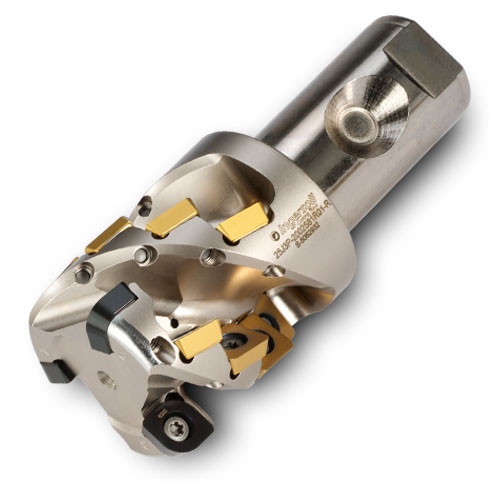

25J3P-2002581R01-R
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Number of Teeth | 16 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 Teeth | Coolant Supply Property (CSP) | External Coolant |
| Cutting Item Count (CICT) | 3 | Arbor Style | Arbor Hole |
| Depth of Cut Maximum (APMX) | 1.9″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 2″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Flute Count (NOF) | 3 | Protruding Length (LPR) | 2-1/2″ |
| Overall Length (OAL) | 4-3/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Length | 1.9″ |
Product Features
| Family Description | End Insert Corner: .250″ R with 2 indexes | Country of Origin | Usa |
Shipping Info
Package Weight
0.004
