2TW7K-1506386R01
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External Coolant |
| Depth of Cut Maximum (APMX) | 1.7″ | Arbor Style | Arbor Hole |
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 9″ | Body Material | Steel |
| Cutting Length | 1.72″ | Protruding Length (LPR) | 6.34″ |
| Number of Teeth | 16 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth | 1.8″ |
Product Features

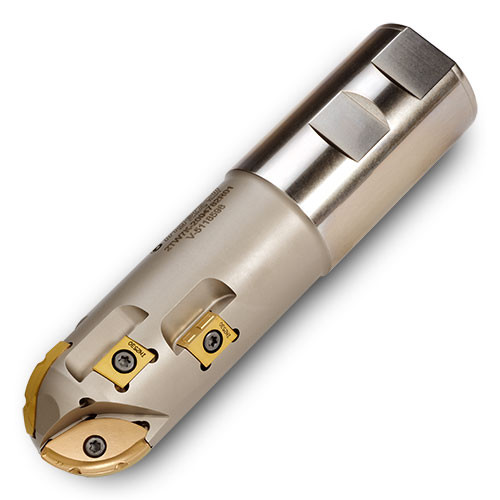

| Family Description | Heavy Duty Roughing Ball Nose End Mill, 3 Effective Insert with 2 indexes Max. Depth of Cut: Full Radius Insert Corner: .625″ to 1.000″R 3 Flute Design Enables Increased Feed Rates Exceptionally Strong Cutting Edges Stable Cutting Per | Country of Origin | Usa |
Shipping Info
Package Weight
0.008
