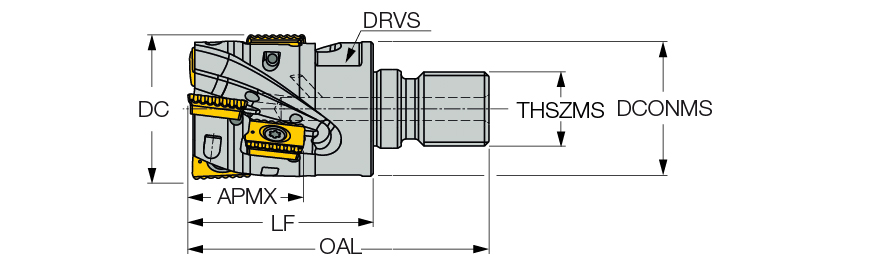

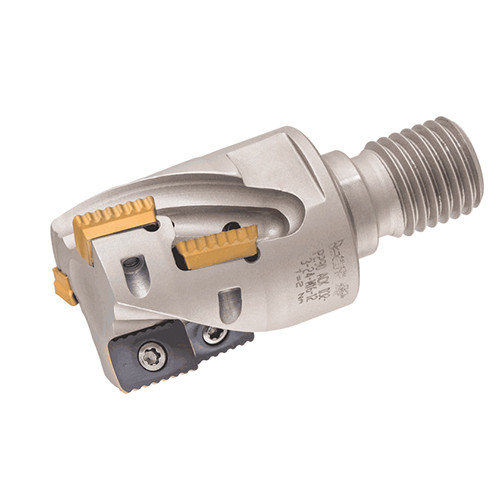

P290 ACK D32-3-24-M16-12
| Application | | Rampdown | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 6 | Master Insert Identification (MIID) | P290 ACKT 1204PDR-FW |
| Depth of Cut Maximum (APMX) | 0.945″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1.26″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 2.559″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 0.945″ | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | Extended flute endmills with a FLEXFIT threaded adaptation carrying .472″ long edged inserts. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.516
