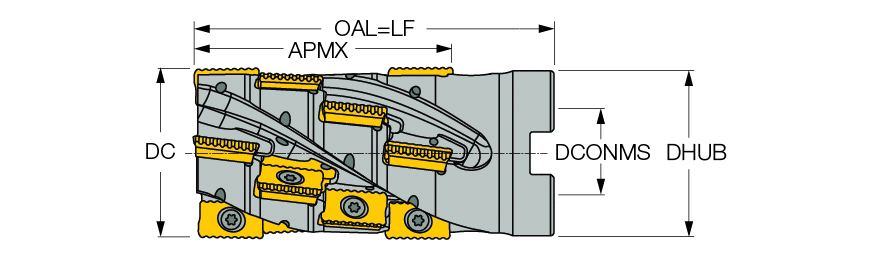

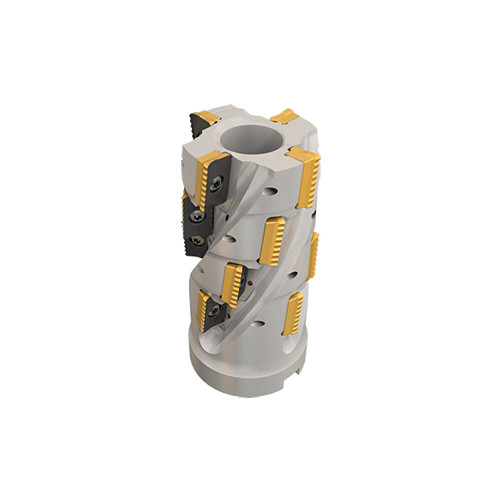

P290 SM D1.5-4-1.4-.75-12
| Application | | Rampdown | Shouldering | | Master Insert Identification (MIID) | P290 ACKT 1204PDR-FW |
| Cutting Item Count (CICT) | 12 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1.4″ | Arbor Style | A |
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 2.52″ | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 1.4″ | Hub Diameter (DHUB) | 1.417″ |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying .472 and .708″ long edged inserts. | Country of Origin | Israel |
