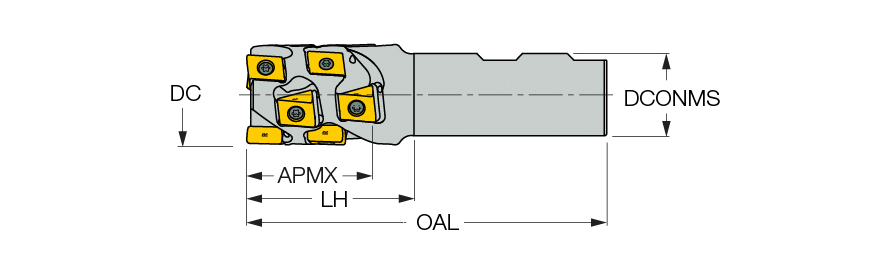

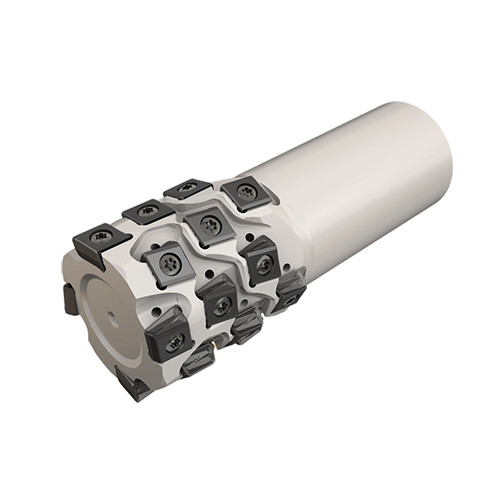

T490 LNK-D32-34-2-C32-11
| Application | | Shouldering | | Cutting Depth | 45 mm |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | T490 LNHT 1106PNTR |
| Depth of Cut Maximum (APMX) | 34 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 120 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 34 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills carrying T490 LN#T 11... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | Important: Maximum clamping torque 3.2 Nxm |
Shipping Info
Package Weight
1.607
