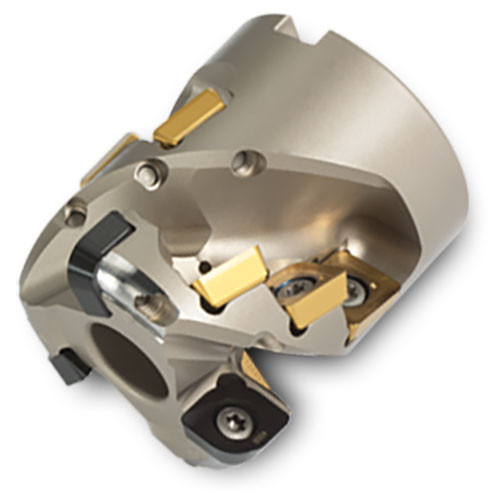

25J3P-20030D1R02-R
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Length | 1.9″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 Teeth | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | External Coolant |
| Depth of Cut Maximum (APMX) | 1.9″ | Arbor Style | Arbor Hole |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 3″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | End insert corner: .250″ R with 2 indexes | Country of Origin | Usa |
