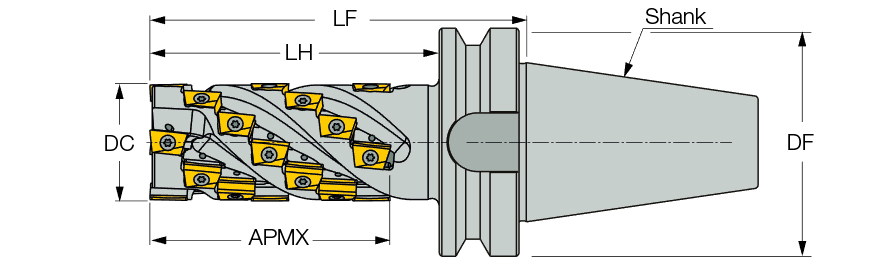

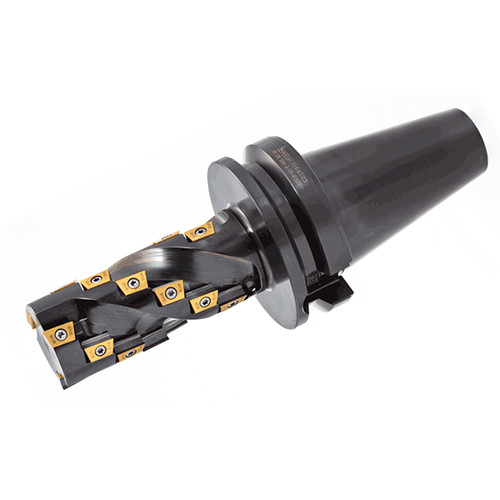

FIN LNK D050-100-4-BT50
| Application | | Shouldering | | Cutting Depth | 123.2 mm |
| Cutting Item Count (CICT) | 28 | Master Insert Identification (MIID) | FIN LNAT 1607 PN-R |
| Depth of Cut Maximum (APMX) | 102 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 263 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 102 mm | Connection Code Machine Side (CCMS) | BT |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills with BT MAS-403 tapered shanks carrying FIN LNAT 1607... tangentially clamped inserts, for semi-finishing long shoulders. | Country of Origin | Israel |
Shipping Info
Package Weight
11.133
