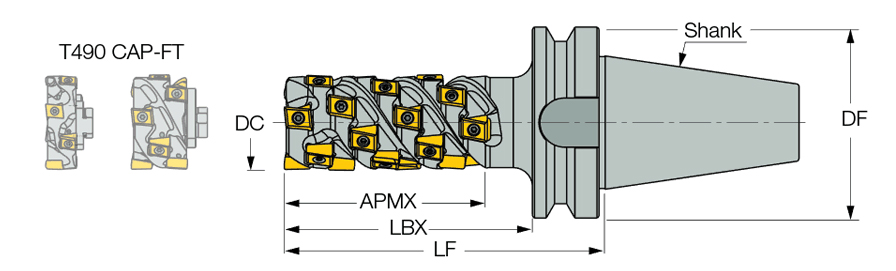

| Application | | Shouldering | | Cutting Depth | 135.2 mm |
| Cutting Item Count (CICT) | 36 | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Depth of Cut Maximum (APMX) | 105 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 275 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 105 mm | Connection Code Machine Side (CCMS) | BT |
| Number of Teeth | 16 |
Product Features

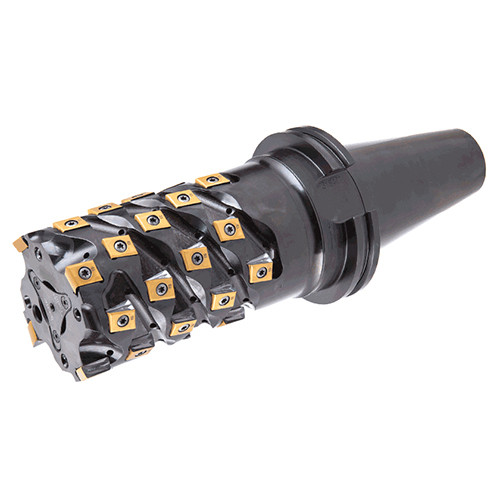

| Family Description | Basic units of modular extended flute endmills with BT MAS-403 tapered shanks carrying T490 LNMT/HT 1306 tangentially clamped Inserts. Can be used with many extension options. | Country of Origin | Israel |

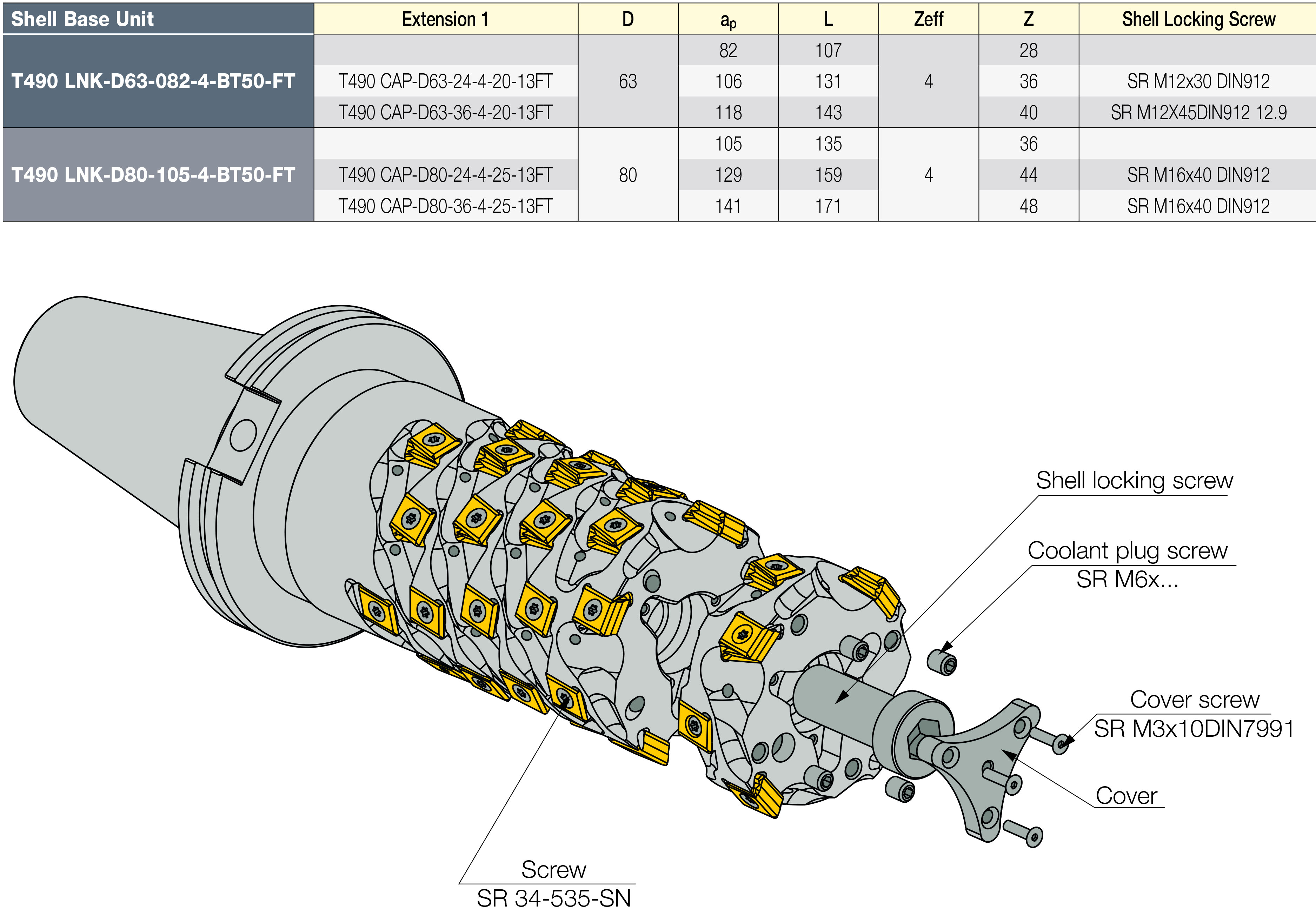

| Remarks | Remove coolant plug screws (SR M6X..DIN916) prior to attaching extension units |
Shipping Info
Package Weight
16.912
