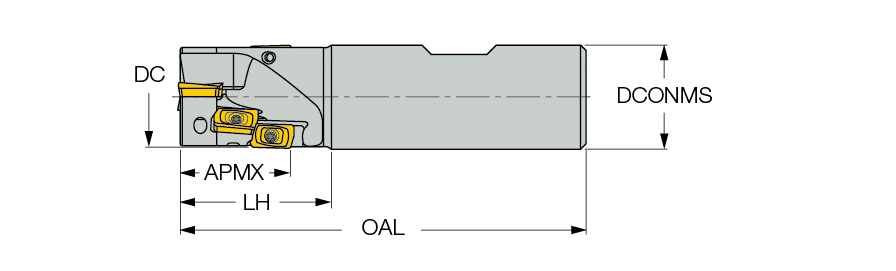

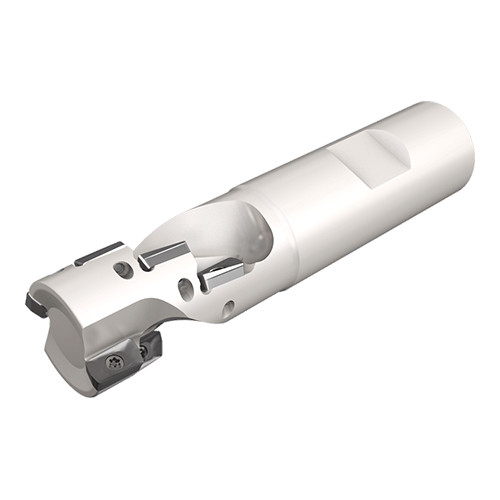

HP ANK D20-28-02-W20-7
| Application | | Shouldering | Slotting | | Cutting Depth | 40 mm |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | HP ANCR 070204PNFR |
| Depth of Cut Maximum (APMX) | 28.6 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 90 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 28.6 mm | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills carrying HELIPLUS HP ANK-07... inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
0.522
