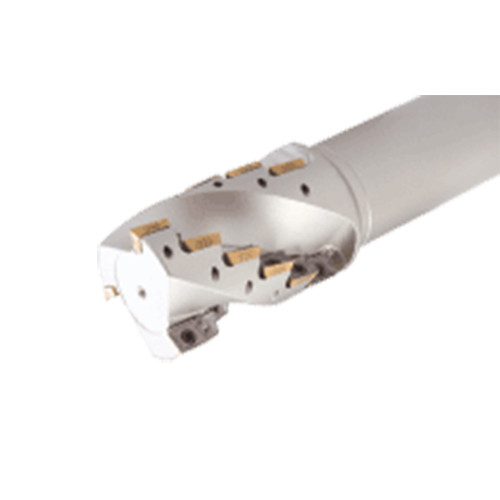

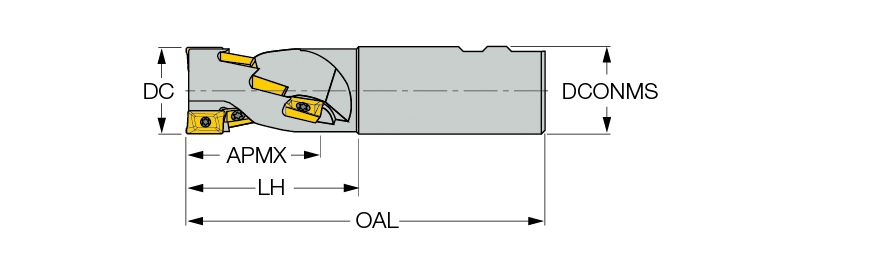

APK D32-45-W32-FE
| Application | | Rampdown | Shouldering | Slotting | | Cutting Depth | 55 mm |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | APKT 1003PDR |
| Depth of Cut Maximum (APMX) | 46 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 115 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 46 mm | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills carrying HELIMILL APKT/R-10... inserts. | Country of Origin | Israel |
| Remarks | Inserts with large corner radii can only be mounted in the face position of the cutter |
Shipping Info
Package Weight
1.431
