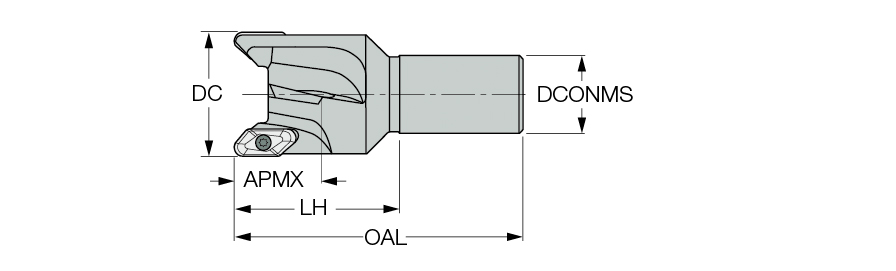

APK D50-40-C32-22
| Depth of Cut Maximum (APMX) | 40 mm | Cutting Depth | 65 mm |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | External Coolant |
| Connection Diameter Machine Side (DCONMS) | 1″ | Arbor Style | Arbor Hole |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Cutting Length | 40 mm | Body Material | Round |
| Number of Teeth | 4 | Tool Type | Extended Flute for Aluminum |
Product Features
| Family Description | Extended flute endmills, used for machining aluminum, carrying HM90 APCR 2206... inserts (HELIALU). | Country of Origin | IL |
| Remarks | Insert tightening torque: 600 Nxcm For adaptation click on "More Info" |
Shipping Info
Package Weight
2.3420
