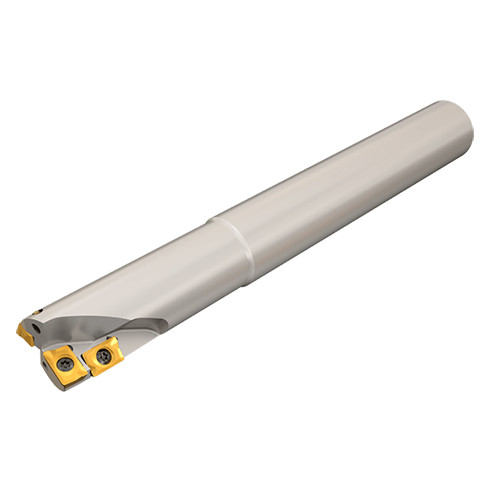

E90AC D38-25W32
| Application | | Counter Boring | Drill Mill | Shouldering | Slotting | | Cutting Depth | 50 mm |
| Cutting Item Count (CICT) | 5 | Master Insert Identification (MIID) | ADCT 1505PDFR-HM |

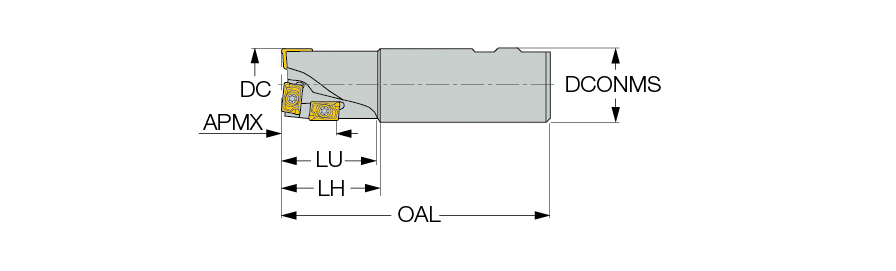

| Depth of Cut Maximum (APMX) | 26 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 38 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 130 mm | Tool Type | 90° indexable endmills |
| Cutting Length | 26 mm | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Drilling endmills carrying APKT/ADKT inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.852
Related Documentation
Insert for E90AC D25 APKT 1003 for E90AC D38 AD..1505 for E90AC D32 and D50 AD..1505 XPMT 1004.
