| Application | | Facing | Slanted Shoulder & Chamfer | | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Cutting Item Count (CICT) | 9 | Coolant Supply Property (CSP) | Coolant Thru |

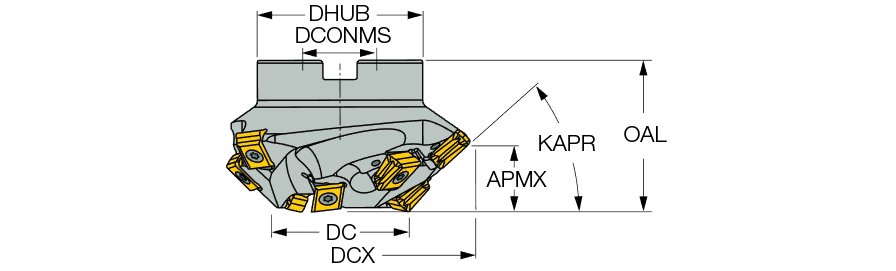

| Depth of Cut Maximum (APMX) | 1.18″ | Arbor Style | A |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 3.388″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Overall Length (OAL) | 2.165″ | Body Material | Steel |
| Cutting Length | 1.72″ | Tool Type | 45° Facemills |
| Number of Teeth | 16 | Hub Diameter (DHUB) | 2.36″ |
| Cutting Depth | 1.18″ |
Product Features

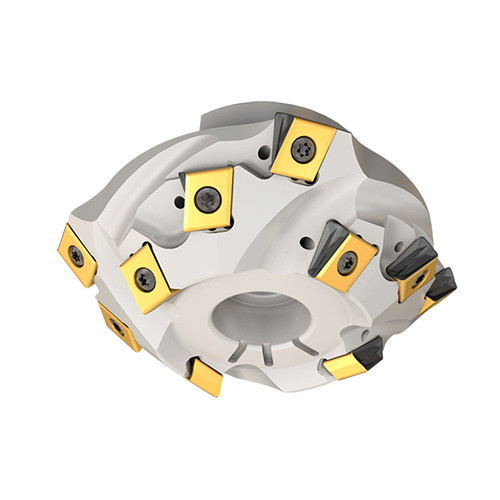

| Family Description | 30°, 45° and 60° extended flute face mills, carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .511″ long cutting edges. | Country of Origin | Israel |

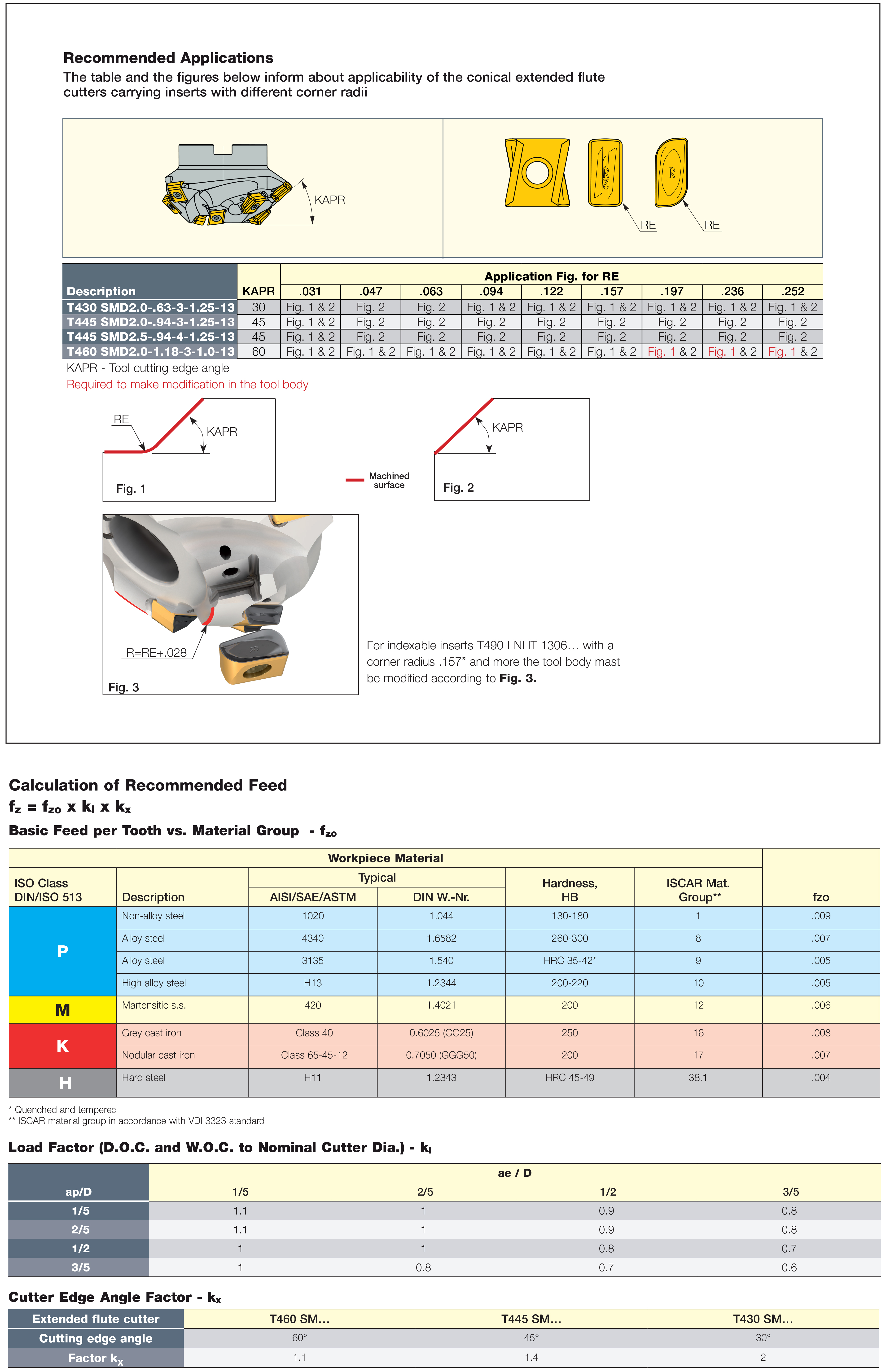

| Remarks | Note: RPM should be considered according to the recommended speed applied on the outer diameter obtained by the specific D.O.C. For calculating feed recommendations, click on More Info |
Shipping Info
Package Weight
2.627
