| Application | | Shouldering | | Cutting Depth | 80.5 mm |
| Cutting Item Count (CICT) | 20 | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Depth of Cut Maximum (APMX) | 59 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 221.8 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 59 mm | Connection Code Machine Side (CCMS) | BT |
| Number of Teeth | 16 |
Product Features

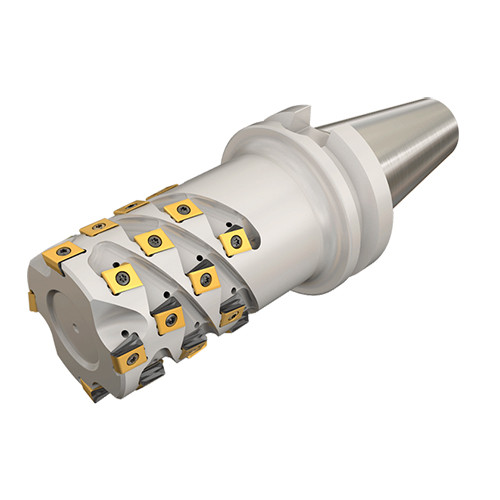

| Family Description | Extended flute endmills with BT MAS-403 tapered shanks carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, 13 mm long cutting edges (HELITANG T490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
10.278
