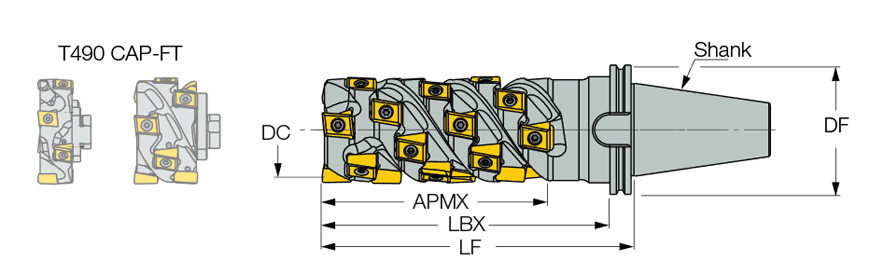

| Application | | Shouldering | | Cutting Depth | 125.5 mm |
| Cutting Item Count (CICT) | 35 | Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
| Depth of Cut Maximum (APMX) | 82 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Body Material | Steel |
| Overall Length (OAL) | 246.35 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 82 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Number of Teeth | 16 |
Product Features

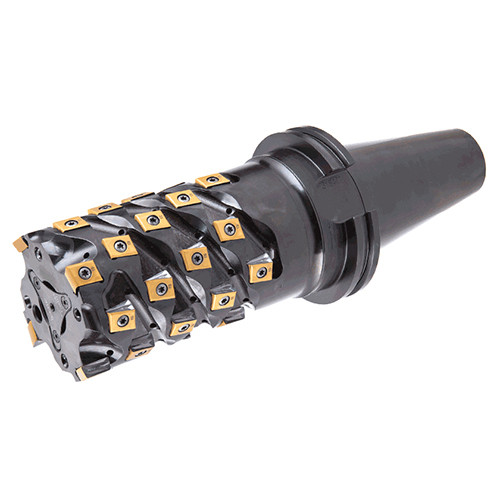

| Family Description | Basic units of modular extended flute endmills with DIN 69871 tapered shanks carrying T490 LNMT/HT 1306 tangentially clamped Inserts. Can be used with many extension options. | Country of Origin | Israel |

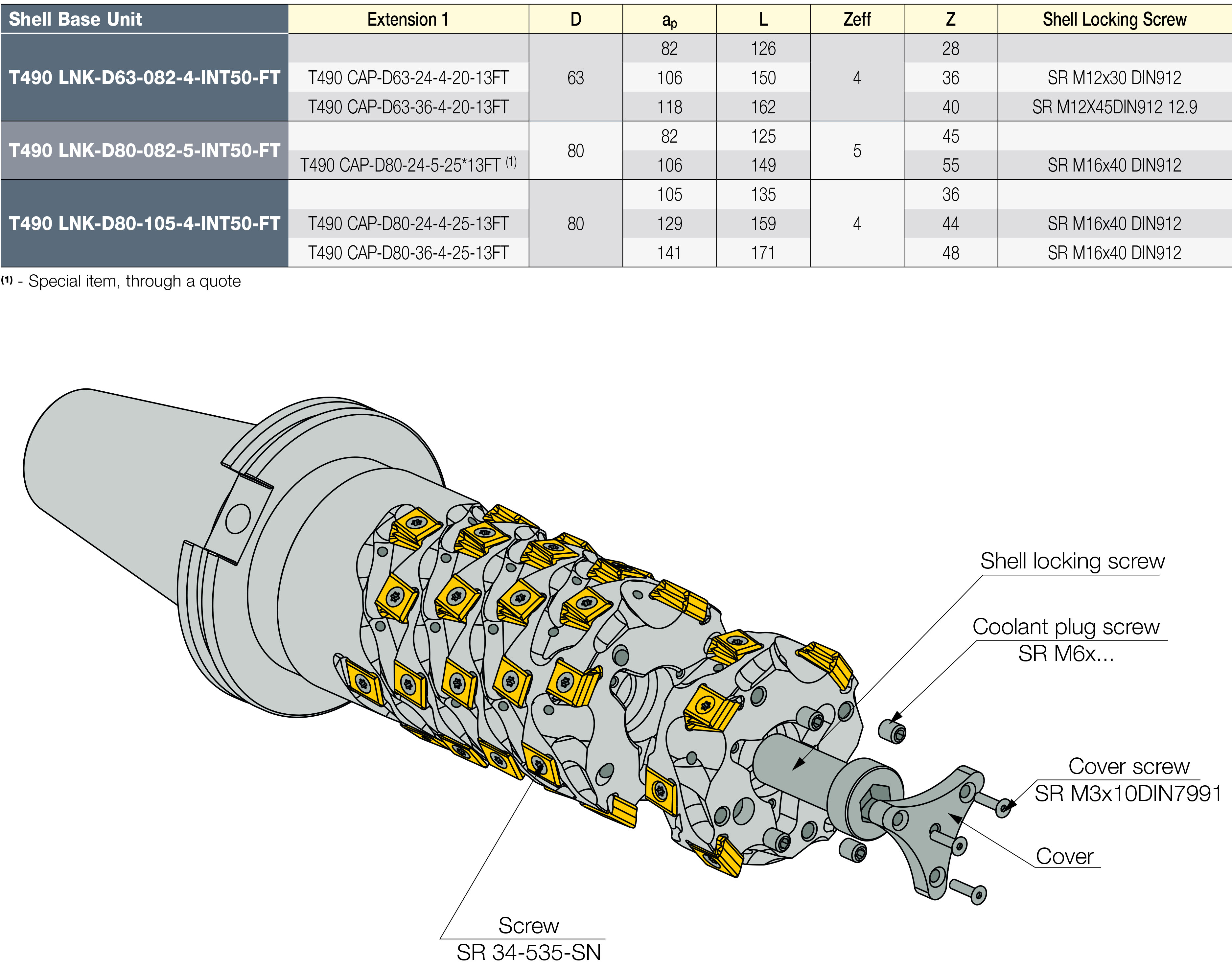

| Remarks | Remove coolant plug screws (SR M6X..DIN916) prior to attaching extension units |
Shipping Info
Package Weight
13.986
