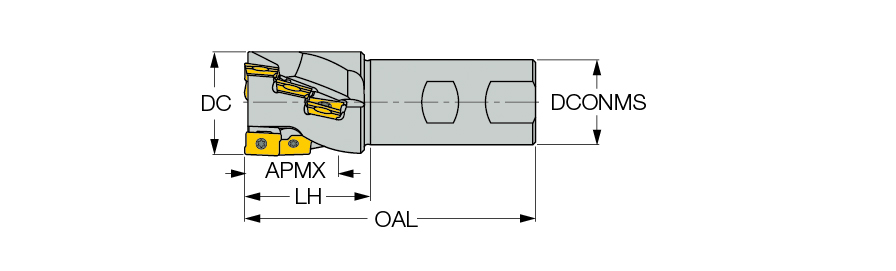

3M AXK D32-36-3-C32-13
| Depth of Cut Maximum (APMX) | 36 mm | Cutting Depth | 50 mm |
| Cutting Diameter (DC) | 32 mm | Coolant Supply Property (CSP) | External Coolant |
| Connection Diameter Machine Side (DCONMS) | 1″ | Arbor Style | Arbor Hole |
| Flute Count (NOF) | 9 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Cutting Length | 36 mm | Body Material | Round |
| Number of Teeth | 9 | Tool Type | 90° Extended Flute Endmills |
Product Features
| Family Description | MILL2000, Heavy duty, extended flute endmills carrying 3M AXKT 1304... inserts with dovetail section shape, helical cutting edges and positive rake angle. Enable a secure clamping and high durability in rough applications. | Country of Origin | IL |
| Remarks | For adaptation click on "More Info" To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece. |
Shipping Info
Package Weight
1.5320
