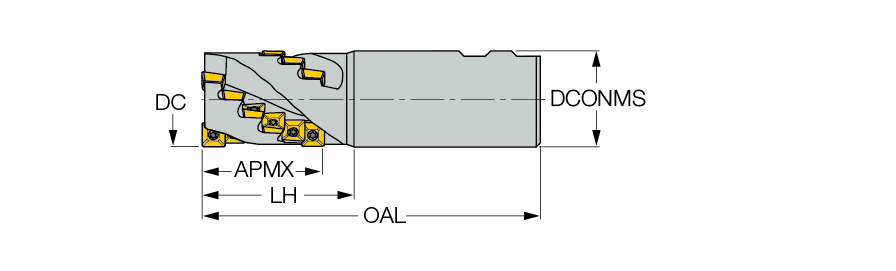

SPK D40-50-C32-10
| Depth of Cut Maximum (APMX) | 51 mm | Cutting Depth | 65 mm |
| Cutting Diameter (DC) | 40 mm | Coolant Supply Property (CSP) | External Coolant |
| Connection Diameter Machine Side (DCONMS) | 1″ | Arbor Style | Arbor Hole |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 130 mm | Measurement Type | Metric |
| Cutting Length | 51 mm | Body Material | Round |
| Number of Teeth | 12 | Tool Type | 90° Extended Flute Endmills |
Product Features
| Family Description | Extended flute endmills carrying S/XPMT / QPMR 10... inserts | Country of Origin | IL |
| Remarks | For adaptation, click on "More Info" |
Shipping Info
Package Weight
2.2050
