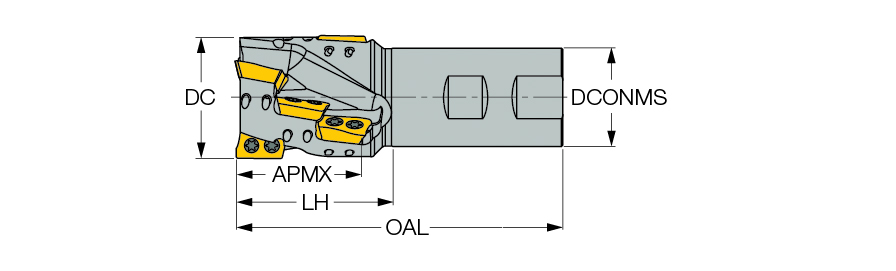

HP ADK D50-54-W40-19
| Depth of Cut Maximum (APMX) | 53 mm | Cutting Depth | 65 mm |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | External Coolant |
| Connection Diameter Machine Side (DCONMS) | 1″ | Arbor Style | Arbor Hole |
| Flute Count (NOF) | 9 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 135 mm | Measurement Type | Metric |
| Cutting Length | 53 mm | Body Material | Weldon |
| Number of Teeth | 9 | Tool Type | 90° Extended Flute Endmills |
Product Features
| Family Description | Extended flute cutters with HELIPLUS HP ADCT/ADKT 1906... inserts. | Country of Origin | IL |
| Remarks | First loosely attach the inner clamping screw, then the outer one. In the same order tighten them both. For adaptation click on "More Info" |
Shipping Info
Package Weight
2.9430
Related Documentation
