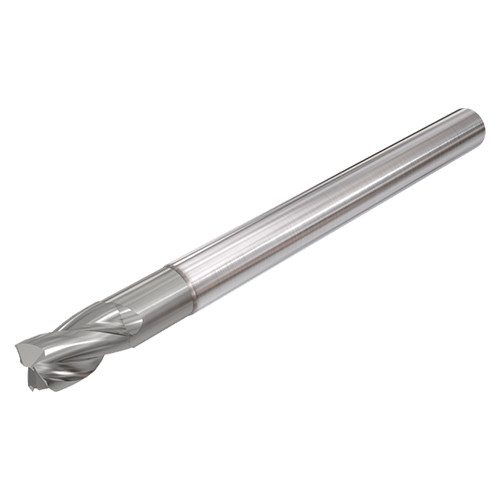

ECSI-E-3 750-813-W750 IC900
SQ End Mill; 3/4″ Dia. × 0.813″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 0″ RE ; 3 FL ; 1-1/2″ LBS ; Carbide ; AlTiN

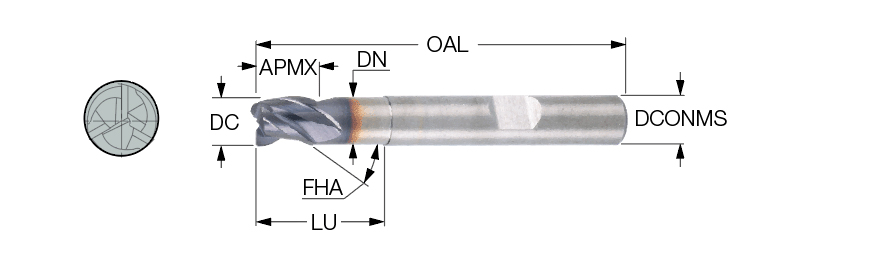

| Cutting Diameter (DC) | 3/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 0.813″ | Neck Diameter (DN) | 0.71″ |
| Overall Length (OAL) | 4″ | Body Half Taper Angle (BHTA) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.0051 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.75″ |
| Usable Length (LU) | 1-1/2″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Weldon |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
| Corner Radius (RE) | 0″ |
Product Features
| Family Description | 3 flute, 38° helix, short solid carbide endmill | Country of Origin | Israel |
Shipping Info
Package Weight
0.877
