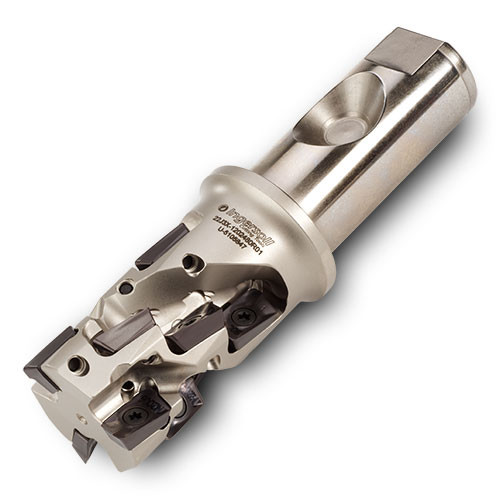

22J3X-1002080R01
| Application | | Facing | Shouldering | Slotting | | Cutting Depth | 1.35″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | External Coolant |
| Depth of Cut Maximum (APMX) | 1.35″ | Arbor Style | Arbor Hole |
| Cutting Diameter (DC) | 1″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 4.27″ | Protruding Length (LPR) | 2.02″ |
| Cutting Length | 1.72″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Number of Teeth | 16 |
Product Features
| Family Description | Inch corners: .015″, .031″, .062″, .093″, .125″ R Metric corners: 3 mm, 4 mm R | Country of Origin | USA |
Shipping Info
Package Weight
0.701
