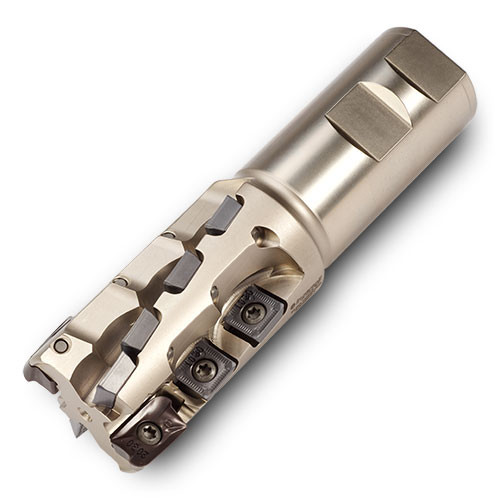

23J6G-1502881R00
| Application | | Facing | Shouldering | Slotting | | Number of Teeth | 16 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 Teeth | Cutting Depth | 2.35″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | External Coolant |
| Depth of Cut Maximum (APMX) | 2.35″ | Arbor Style | Arbor Hole |
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 5.12″ | Protruding Length (LPR) | 2.87″ |
| Cutting Length | 1.72″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Face Insert Corner: .031″, .062″, .093″ and .125″R with 2 indexes | Country of Origin | Usa |
Shipping Info
Package Weight
0.003
