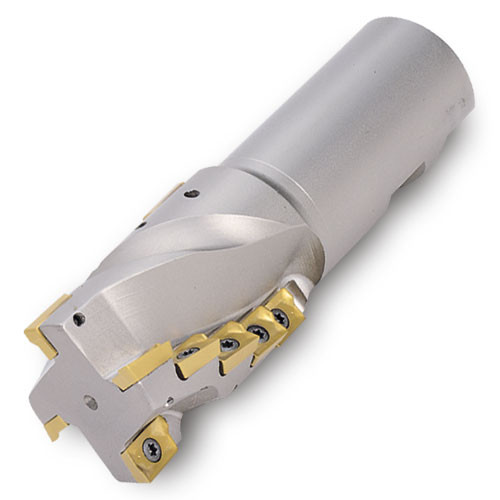

22J3E-1502381R01
| Application | | Facing | Shouldering | Slotting | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | External Coolant |
| Depth of Cut Maximum (APMX) | 1.74″ | Arbor Style | Arbor Hole |
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Overall Length (OAL) | 4.58″ | Protruding Length (LPR) | 2-1/4″ |
| Cutting Length | 1.66″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | 32-63 Ra surface finishes when engaging the wiper (WEP) Insert corners: .015″, .031″, .062″, .093″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.003
