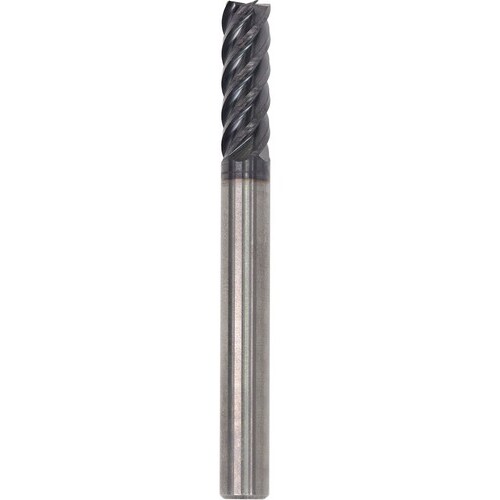

12X12X50X100 EM 5FL SQ TA
SQ End Mill; 12 mm Dia. × 50 mm LOC × 12 mm Shank Dia. × 100 mm OAL ; 0 mm RE ; 5 FL ; 50 mm LBS ; Carbide ; AlTiN ; Series V-CARB
| Cutting Diameter (DC) | 12 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 50 mm |
| Depth of Cut Maximum (APMX) | 50 mm | Corner Radius (RE) | 0 mm |
| Overall Length (OAL) | 100 mm | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Series/List # | V-CARB |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.18
