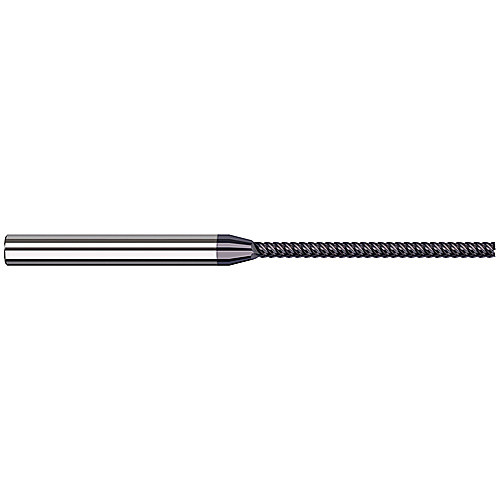

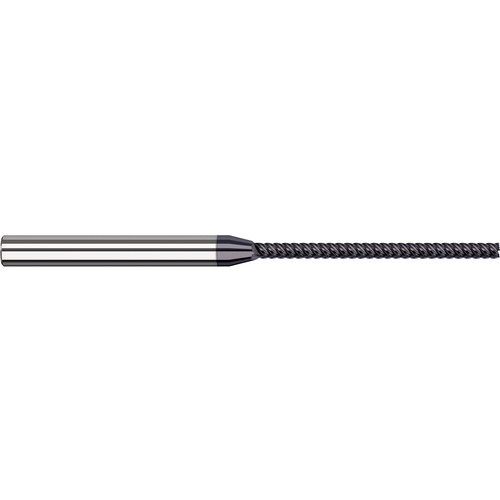

836612-C6 .187 EM-NANO
SQ End Mill; 3/16″ Dia. × 0.15″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 7 FL ; 0.15″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/16″ | Usable Length (LU) | 0.15″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 0.15″ | Length Group | 0.8D |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.188″ |
| Flute Count (NOF) | 7 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Shank Size (SS) | 3/16″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
