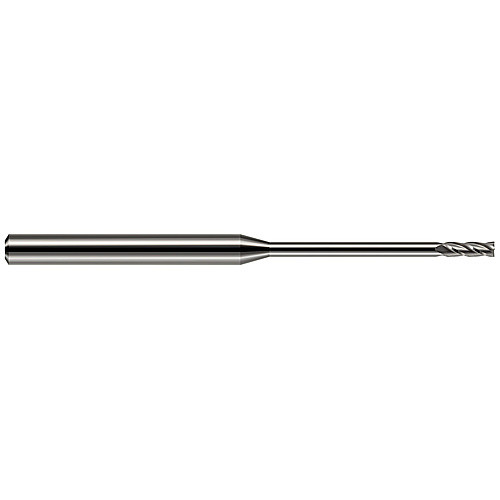

838662 .062 EM
SQ End Mill; 1/16″ Dia. × 0.186″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/16″ | Neck Diameter (DN) | 0.0605″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Length (LN) | 0.764″ |
| Depth of Cut Maximum (APMX) | 0.186″ | Length Group | 15D |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.062″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 0.95″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.012
