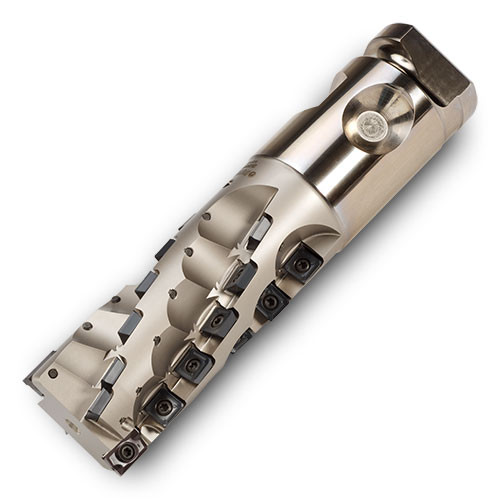

23J6G-2005052R01
| Application | | Facing | Shouldering | Slotting | | Number of Teeth | 16 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 Teeth | Cutting Depth | 4.39″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | External Coolant |
| Depth of Cut Maximum (APMX) | 4.39″ | Arbor Style | Arbor Hole |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 8-1/4″ | Protruding Length (LPR) | 5″ |
| Cutting Length | 1.72″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Insert corners: .031″, .062″, .093″, .125″, .187″, .250″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.012
