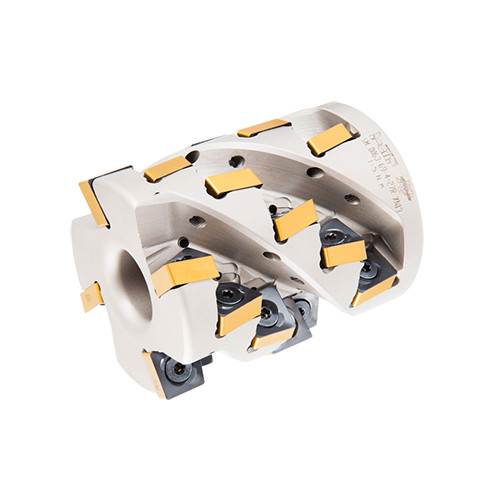

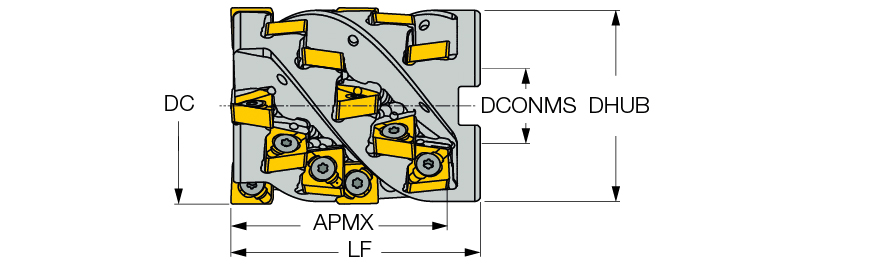

SM D063-69-4-27R XN13
| Application | | Shouldering | | Master Insert Identification (MIID) | XNMU 1306 |
| Cutting Item Count (CICT) | 24 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 69 mm | Arbor Style | A |
| Cutting Diameter (DC) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 80 mm | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 69 mm | Hub Diameter (DHUB) | 61.3 mm |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute shell mills carrying XNMU 1306... inserts. | Country of Origin | Israel |
| Remarks | Radial W.O.C. < 0.3xDC |
Shipping Info
Package Weight
2.923
