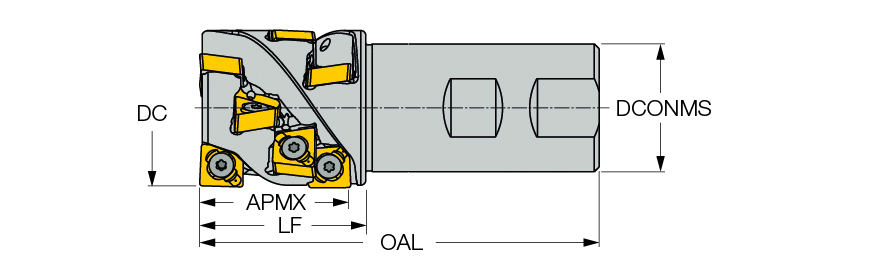

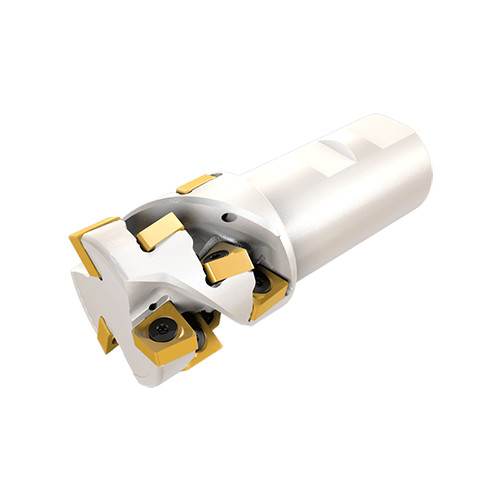

XNK D050-46-3-W40 XN13
| Application | | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | XNMU 130608PNN-MM |
| Depth of Cut Maximum (APMX) | 46 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 125 mm | Tool Type | 90° Extended flute endmills |
| Cutting Length | 46 mm | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Extended flute endmills carrying XNMU 1306... inserts. | Country of Origin | Israel |
| Remarks | Radial W.O.C. < 0.3xDC |
Shipping Info
Package Weight
2.681
