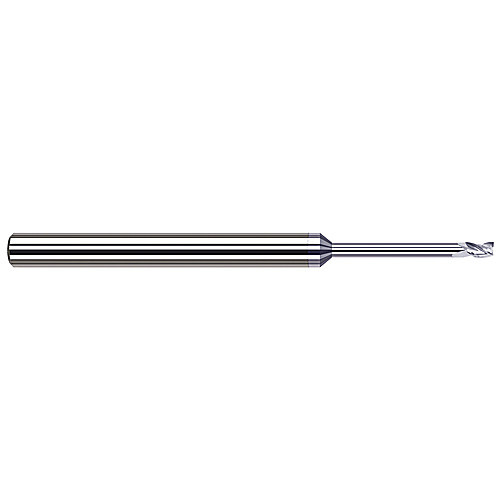

919416-C8 .250 EM-TIB2
Square End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; TiB2
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.246″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Length Group | 10D |
| Overall Length (OAL) | 4″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiB2 | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 42 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 2-1/2″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.102
