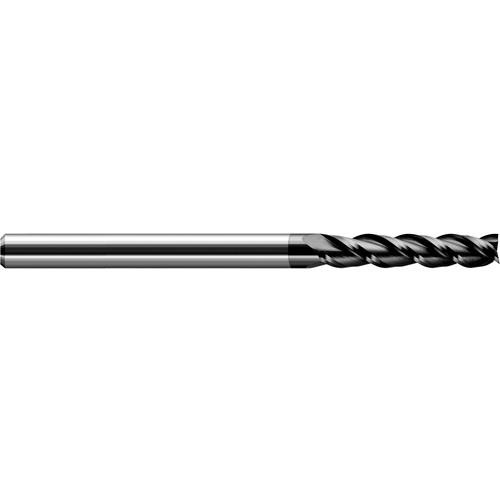

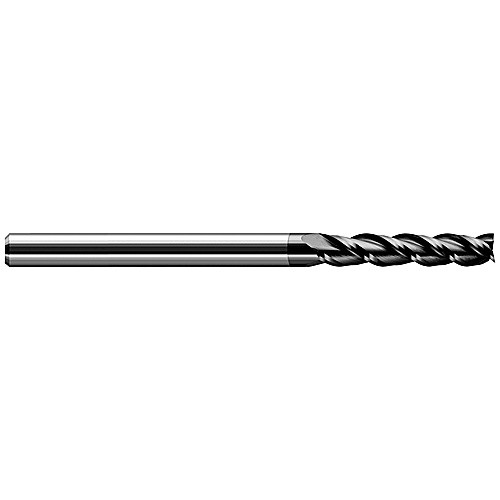

941316-C4 .250 EM-DMD
SQ End Mill; 1/4″ Dia. × 1-1/4″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 1-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Other Non-Metallic Materials | |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Length Group | 5D |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | DLC | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.077
