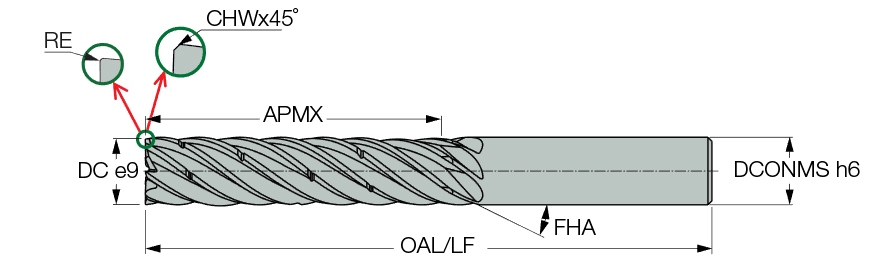

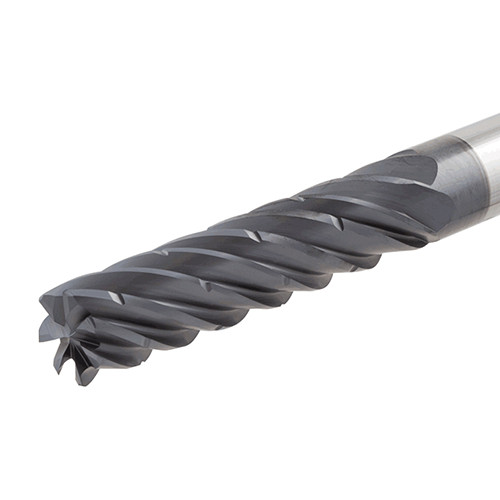

ECP-H7 12-48C12CFR0.6-110 IC902
SQ End Mill; 12 mm Dia. × 48 mm LOC × 12 mm Shank Dia. × 110 mm OAL ; 0.6 mm RE ; 7 FL ; 48 mm LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 12 mm | Application | | Counter Boring | Plunging & Recessing | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 0.6 mm |
| Depth of Cut Maximum (APMX) | 48 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Overall Length (OAL) | 110 mm | Grade | IC902 |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Count (NOF) | 7 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 36 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 48 mm | Cutting Diameter Tolerance | e9 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | CHATTERFREE 7 flute solid carbide roughing endmills with 35-37° different helix and long chip splitting cutting edges for high stock removal rates. Mainly for machining stainless steel and high temperature alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.33
