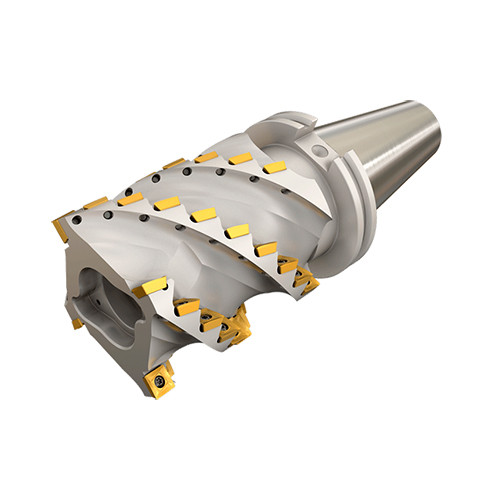

SDK D100-105CAT50-FT
| Application | | Shouldering | Slotting | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 40 | Master Insert Identification (MIID) | SDMT 1205 |
| Depth of Cut Maximum (APMX) | 4.13″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 3.937″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 50″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 9.95″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 4.13″ | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Family Description | Basic units of modular extended flute endmills with Caterpillar tapered shanks using S/QDMT 1205... inserts. Cay be used with many extension options. | Country of Origin | Israel |
Shipping Info
Package Weight
16.413
