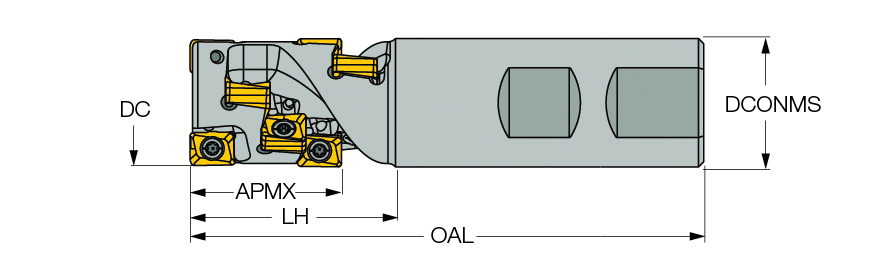

| Depth of Cut Maximum (APMX) | 1.95″ | Cutting Depth | 2.51″ |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 1″ | Arbor Style | Arbor Hole |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.92″ | Measurement Type | Inch |
| Cutting Length | 1.95″ | Body Material | Weldon |
| Number of Teeth | 28 | Tool Type | 90° Extended Flute Endmills |

Product Features
| Family Description | Extended flute endmills carrying H490 ANKX 09... double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line). | Country of Origin | IL |
Shipping Info
Package Weight
1.4330
